InGaAs, InAs and InAsSb IR Detectors

Photovoltaic infrared detectors in which the semiconductor element is made of InGaAs, InAs, InAsSb or superlattice material.

These detectors are cadmium and mercury free. As a result, the detectors comply with the RoHS directive and can be used in the consumer market.

InGaAs, InAs and InAsSb IR Detectors

Filter results

close-icon


Name

Active element material

Cooling

Immersion

Optical area

?

Ao, mm×mm

dA, mm

Cut-on wavelength (10%)

?

λcut-on, μm

Peak wavelength

?

λpeak, μm

Cut-off wavelength (10%)

?

λcut-off, μm

Current responsivity

?

Ripeak), A/W

Detectivity

?

D* (λpeak, f = 20 kHz), cm⋅Hz1/2/W

Time constant

?

τ, ns

Package

Window

Datasheet

Material

InGaAs

Cooling

no

Immersion

no

Optical area

d1

Cut-on wavelength cut-on

-

Peak wavelength

1.59

Cut-off wavelength cut-off

1.7

Responsivity

1.02

Detectivity

1.0×10\(^{12}\)

Time constant

1.1

Package

TO39

Window

BK7

Material

InGaAs

Cooling

no

Immersion

no

Optical area

d3

Cut-on wavelength cut-on

-

Peak wavelength

1.59

Cut-off wavelength cut-off

1.7

Responsivity

1.02

Detectivity

≥4.5×10\(^{11}\)

Time constant

6.4

Package

TO39

Window

no

Material

InGaAs

Cooling

no

Immersion

no

Optical area

d5

Cut-on wavelength cut-on

-

Peak wavelength

1.59

Cut-off wavelength cut-off

1.7

Responsivity

1.02

Detectivity

≥3.0×10\(^{11}\)

Time constant

53.3

Package

TO39

Window

no

Material

InAs

Cooling

no

Immersion

no

Optical area

1×1

Cut-on wavelength cut-on

2.3

Peak wavelength

3.1

Cut-off wavelength cut-off

3.5

Responsivity

1.1

Detectivity

7.0×10\(^{9}\)

Time constant

35

Package

TO39

Window

no

Material

InAs

Cooling

no

Immersion

no

Optical area

d1.2

Cut-on wavelength cut-on

1.3

Peak wavelength

2.9

Cut-off wavelength cut-off

3.6

Responsivity

0.88

Detectivity

6.4×10\(^{9}\)

Time constant

35

Package

SMD

Window

no, pAl2O3

Material

InAs

Cooling

no

Immersion

no

Optical area

d1.2

Cut-on wavelength cut-on

-

Peak wavelength

2.92

Cut-off wavelength cut-off

-

Responsivity

0.73

Detectivity

5.3×10\(^{9}\)

Time constant

35

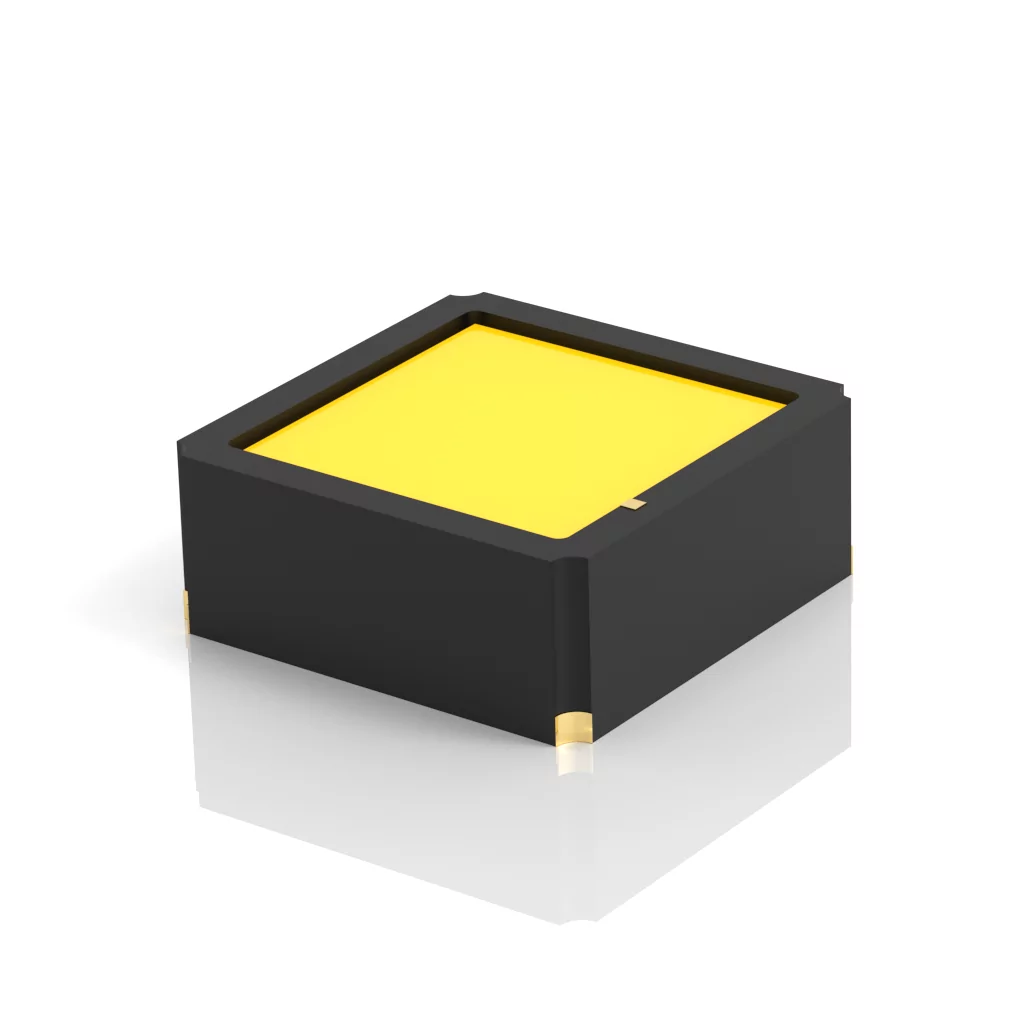

Package

SMD

Window

BPF2920

Material

InAs

Cooling

no

Immersion

no

Optical area

d1.2

Cut-on wavelength cut-on

-

Peak wavelength

3.33

Cut-off wavelength cut-off

-

Responsivity

0.62

Detectivity

4.5×10\(^{9}\)

Time constant

35

Package

SMD

Window

BPF3330

Material

InAsSb

Cooling

no

Immersion

no

Optical area

d1

Cut-on wavelength cut-on

2.0

Peak wavelength

4.5

Cut-off wavelength cut-off

5.6

Responsivity

0.35

Detectivity

2.0×10\(^{9}\)

Time constant

-

Package

SMD

Window

no, pAl2O3

Material

InAsSb

Cooling

no

Immersion

no

Optical area

d1

Cut-on wavelength cut-on

-

Peak wavelength

3.9

Cut-off wavelength cut-off

-

Responsivity

0.22

Detectivity

1.2×10\(^{9}\)

Time constant

-

Package

SMD

Window

BPF3900

Material

InAsSb

Cooling

no

Immersion

no

Optical area

d1

Cut-on wavelength cut-on

-

Peak wavelength

4.26

Cut-off wavelength cut-off

-

Responsivity

0.24

Detectivity

1.3×10\(^{9}\)

Time constant

-

Package

SMD

Window

BPF4260

Material

InAsSb

Cooling

no

Immersion

yes

Optical area

1×1

Cut-on wavelength cut-on

2.3

Peak wavelength

4.0

Cut-off wavelength cut-off

5.6

Responsivity

1.4

Detectivity

1.7×10\(^{9}\)

Time constant

30

Package

TO39

Window

no

Material

InAsSb

Cooling

1TE

Immersion

no

Optical area

1×1

Cut-on wavelength cut-on

2.0

Peak wavelength

4.0

Cut-off wavelength cut-off

5.5

Responsivity

0.18

Detectivity

1.0×10\(^{9}\)

Time constant

20

Package

TO39

Window

pSiAR

Material

InAsSb

Cooling

1TE

Immersion

no

Optical area

1×1

Cut-on wavelength cut-on

2.0

Peak wavelength

4.4

Cut-off wavelength cut-off

6.6

Responsivity

0.18

Detectivity

4.3×10\(^{9}\)

Time constant

40

Package

TO39

Window

pSiAR

Material

InAsSb

Cooling

no

Immersion

yes

Optical area

1×1

Cut-on wavelength cut-on

1.8

Peak wavelength

7.1

Cut-off wavelength cut-off

12.0

Responsivity

0.14

Detectivity

7.7×10\(^{8}\)

Time constant

1.65

Package

TO39

Window

no

Material

InAsSb

Cooling

4TE

Immersion

yes

Optical area

1×1

Cut-on wavelength cut-on

1.8

Peak wavelength

6.7

Cut-off wavelength cut-off

11.3

Responsivity

0.55

Detectivity

1.0×10\(^{10}\)

Time constant

3

Package

TO8

Window

wZnSeAR

Material

InAsSb

Cooling

4TE

Immersion

yes

Optical area

1×1

Cut-on wavelength cut-on

2.0

Peak wavelength

10.5

Cut-off wavelength cut-off

13.6

Responsivity

0.38

Detectivity

3.0×10\(^{9}\)

Time constant

3

Package

TO8

Window

wZnSeAR
