InAsSb room temperature photovoltaic infrared detectorPVA-5-d1-SMD-NW/pAl2O3-115

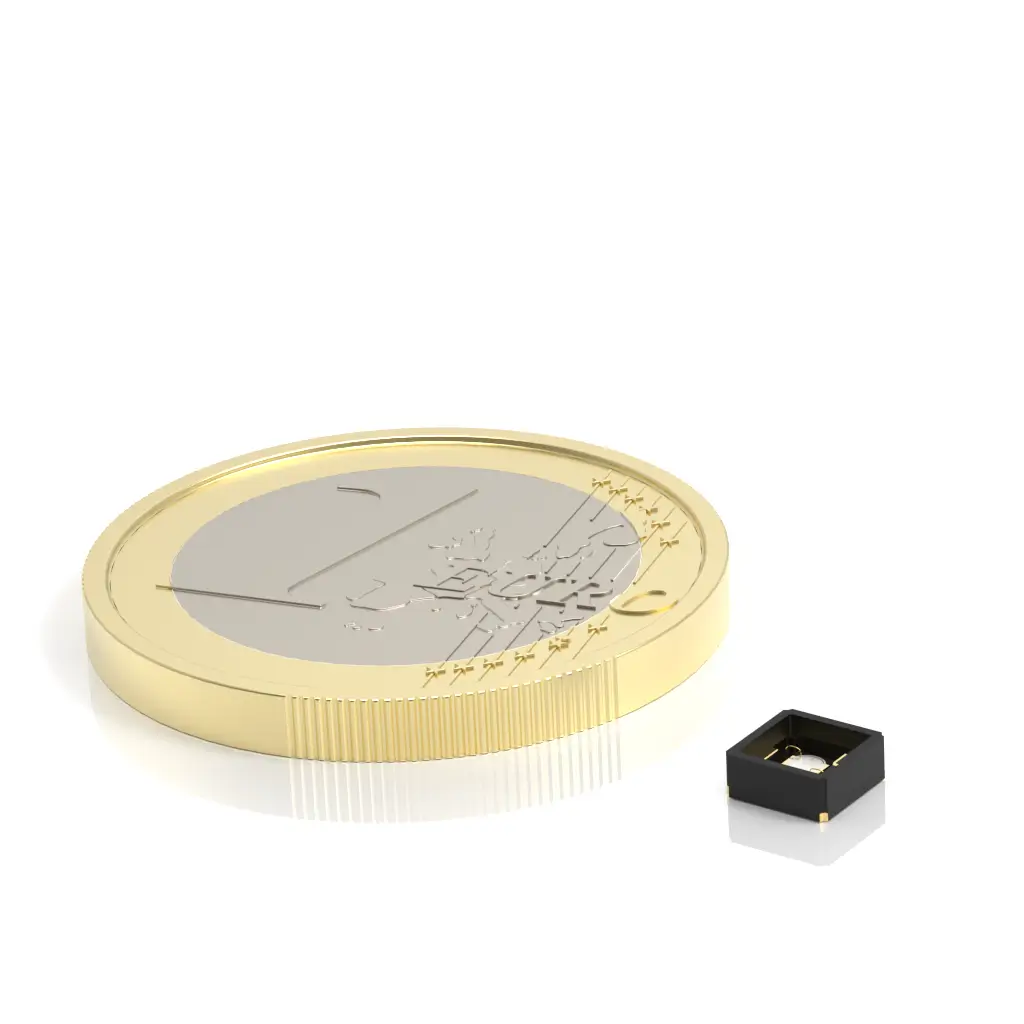

PVA-5-d1-SMD-NW-115 and PVA-5-d1-SMD-pAl2O3-115 are uncooled photovoltaic IR detector based on InAsSb heterostructure for optimal performance and stability. It enables the detection of radiation in the range from 2.0 μm to 5.6 μm. The diameter (dA) of its active element is 1 mm. The detector is available in the SMD package without a window or with a planar sapphire window (pAl2O3).

Features

Spectral range: 2.0 to 5.6 µm

RoHS-compliant III-V material

Large active area

Front-side illuminated

High ambient operating and storage temperature

Compact, surface mount type ceramic package

Compatible with lead-free solder reflow

No minimum order quantity required

Applications

Contactless temperature measurement: railway transport, industrial and laboratory processes monitoring

Flame and explosion detection

Threat warning systems

Heat-seeking, thermal signature detection

Dentistry

Gas detection, monitoring and analysis: CH4, C2H2, CH2O, HCl, NH3, SO2, C2H6, CO, CO2, NOx

Breath analysis: C2H6, CH2O, NH3, NO, OCS

Gas leak detection

Combustion process control

Non-destructive material testing

Detector configuration

Detector symbol PVA-5-d1-SMD-NW-115 PVA-5-d1-SMD-pAl2O3-115
Detector type photovoltaic
Active element material epitaxial InAsSb heterostructure
Cooling no
Temperature sensor n/a
Active area diameter, dA 1 mm
Immersion no
Package SMD
Acceptance angle, Φ ≥115 deg.
Window no pAl2O3 (planar sapphire)

Specification

(Tamb = Tchip = 293 K, Vb = 0 V)

Parameter Value Unit
Min. Typ. Max. -
Cut-on wavelength, λcut-on (10%) - 12.0 - μm
Peak wavelength, λpeak - 4.5 - μm
Cut-off wavelength, λcut-off (10%) - 5.6 μm - μm
Detectivity, D* (λpeak, f = 20 kHz) 1.0×109 2.0×109 - cm·Hz1/2/W
Current responsivity, Ripeak) 0.20 0.35 - A/W
Dynamic resistance, Rd 55 65 - Ω

Spectral response

(Typ., Tamb = Tchip = 293 K)

Graph showing detectivity (D*, cm·Hz^1/2/W) on the y-axis and wavelength (λ, μm) on the x-axis, ranging from 2.0 to 6.0 μm. The curve starts high, shows variability, peaks around 3.5 μm, and then declines sharply.
