InAsSb one-stage thermoelectrically-cooled photovoltaic multi-junction infrared detectorPVMA-1TE-6-1x1-TO39-pSiAR-70

PVMA-1TE-6-1x1-TO39-pSiAR-70 is a one-stage thermoelectrically cooled photovoltaic multi-junction IR detector based on InAsSb heterostructure for optimal performance and stability. It enables the detection of radiation in the range from 2.2 μm to 6.6 μm. Its active area (A) is 1 mm × 1 mm. The detector is available in the TO39 package with a planar silicon anti-reflection coating window (pSiAR).

See specification

Download datasheet

See related files

Features

Spectral range: 2.0 to 6.6 µm

RoHS compliant III-V material

Large active area

Back-side illuminated

One-stage thermoelectrically cooled

Long term stability

No minimum order quantity required

Applications

Gas detection, monitoring and analysis: CH4, C2H2, CH2O, HCl, NH3, SO2, C2H6, CO, CO2, NOx, SOx, HNO3

Exhaust gas denitrification

Combustion process control

Contactless temperature measurement: railway transport, industrial and laboratory processes monitoring

Heat-seeking, thermal signature detection

Non-destructive material testing

Biochemical analysis

Laser calibration

Detector configuration

Detector symbol	PVMA-1TE-6-1x1-TO39-pSiAR-70
Detector type	photovoltaic, multi-junction
Active element material	epitaxial InAsSb heterostructure
Cooling	1TE (T_chip ≅ 253 K)
Temperature sensor	thermistor
Active area, A	1 mm × 1 mm
Optical immersion	no

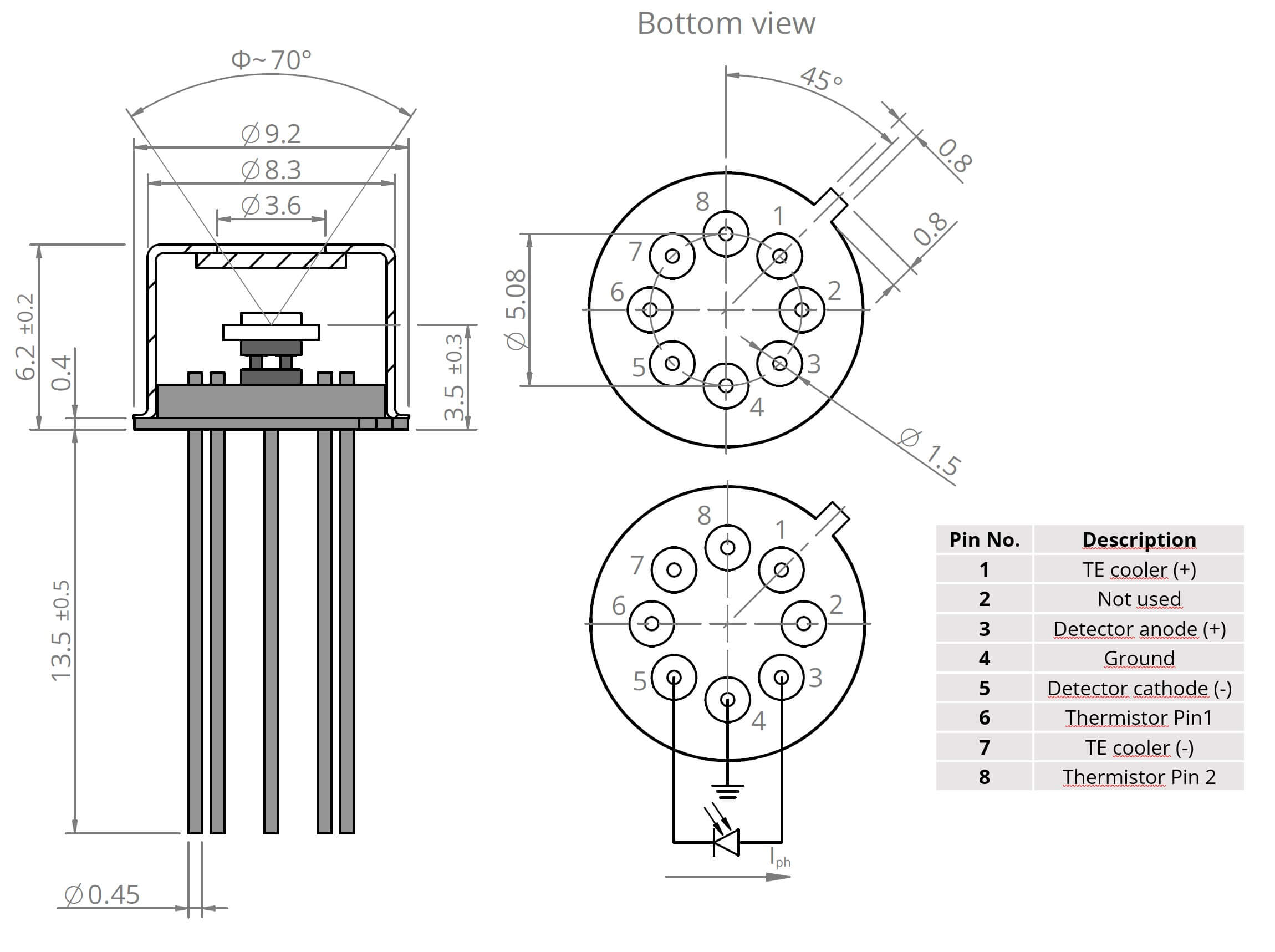

Package	1TE-TO39 (8 pin)
Acceptance angle, Φ	~70 deg.
Window	pSiAR (planar silicon, anti-reflection coating)

Specification

(T_amb = 293 K, T_chip = 253 K, V_b = 0 V)

Parameter	Value			Unit
	Min.	Typ.	Max
Cut-on wavelength, λ_cut-on (10%)	-	2.0	-	μm
Peak wavelength, λ_peak	-	4.4±0.5	-	μm
Cut-off wavelength, λ_cut-off (10%)	-	6.6	-	μm
Detectivity, D* (λ_peak, f = 20 kHz)	1.4×10⁹	4.3×10⁹	-	cm·Hz^1/2/W
Current responsivity, R_i (λ_peak)	0.08	0.18	-	A/W
Time constant, τ	-	40	200	ns
Dynamic resistance, R_d	300	800	-	Ω
