Affordable IR detection module based on InAsSb temperature stabilized photovoltaic detectorAMS6140-01
Temperature stabilized, integrated amplifier and temperature controller
The AMS6140-01 is a cost-effective solution designed for high volume applications. Built-in amplifier and temperature controller provide constant responsivity over a wide range of ambient temperatures. Wide bandwidth and low 1/f noise corner provide efficient measurements with generally available sources of radiation, including MEMS heaters, and pulsed LEDs or lasers. With differential output, the AMS6140-01 offers easy connectivity over connectors with high immunity to electromagnetic interference. Small dimensions provide easy mechanical and thermal integration with the target device.
For testing performance and evaluating the functionalities of the AMS6140-01, the Evaluation Kit and additional accessories are available.
Features
Spectral range: 2.2 to 6.58 µm
Active area: 1 mm × 1 mm
Built-in temperature controller
Pin configurable chip temperature
Low 1/f noise corner
Bandwidth: DC up to 2.6 MHz
Single low voltage power supply: 3.3 V
Differential output
Small dimensions: 30 mm × 19 mm × 10 mm
III-V material
Small board to board connector
Low weight: 5 g
Evaluation Kit and additional accessories available
Applications
Gas detectors with MEMS, LED, or laser sources
Temperature sensors
Embedded systems
Portable devices
Specification
(Tamb = 20°C, Rload = 1 MΩ to ground, unless otherwise noted)
Parameter |
Typical value |
||
|
Chip temperature, Tchip
|
-20°C | 20°C | |
|
Active element material
|
epitaxial InAsSb heterostructure | ||
|
Active area, A
|
1 mm × 1 mm | ||
|
Cut-on wavelength, λcut-on (10%)
|
2.20 μm | 1.7 μm | |
|
Peak wavelength, λpeak
|
4.20 μm | 4.2 μm | |
|
Cut-off wavelength, λcut-off (10%)
|
6.58 μm | 7.0 μm | |
| Detectivity, D* (λpeak) |
1.0×109 cm⋅Hz1/2/W
|
4.2×108 cm⋅Hz1/2/W
|
|
| Voltage responsivity Rv (λpeak) | 220 V/W |
160 V/W
|
|
|
Low cut-off frequency, flo
|
DC | DC | |
| High cut-off frequency, fhi (Rload = 50 Ω) | 2.6 MHz | 2.3 MHz | |
| Output impedance, Rout | 50 Ω | ||
| Output voltage swing, Vout | 0.2 V (negative)
2.2 V (positive) |
||
|
Power supply voltage, Vsup
|
3.3 V | ||
|
Detector package
|
TO39 | ||
|
Acceptance angle, Φ
|
58 deg. | ||
|
Window
|
pSiAR
(planar silicon, anti-reflection coating) |
||
Spectral response
(Tamb = 20°C)

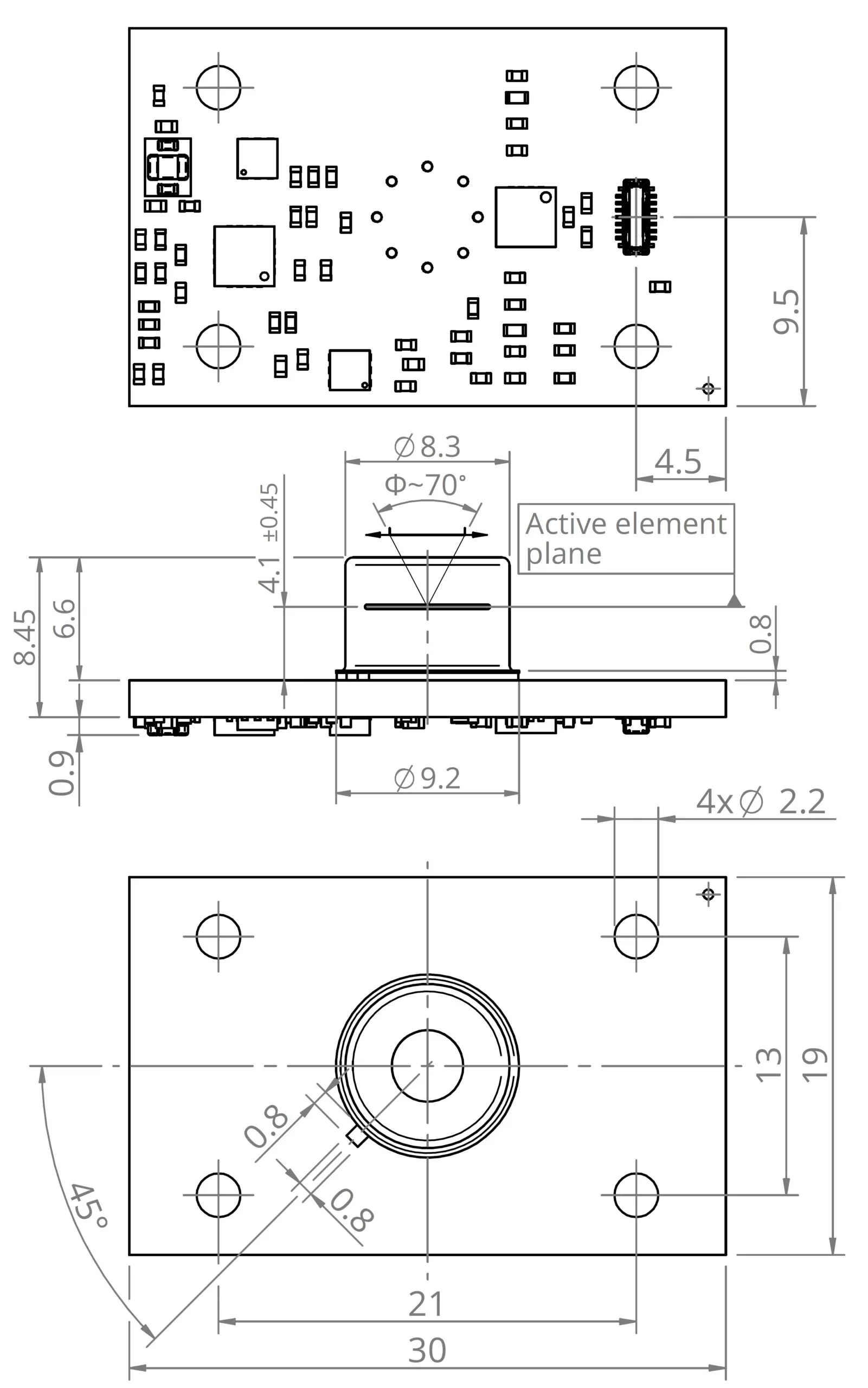

Mechanical layout
(Unit: mm)
