Signal processing add-on for the AMS detection module seriesAMS-DIG-PROC

The AMS-DIG-PROC is a digital accessory for the AMS detection module series. It is designed to be an easy tool for rapid prototyping and proof-of-concept work. It provides standard electrical interfaces and well-documented software protocol to fit all infrared measurement applications.

Features

Onboard 16bit acquisition and 32bit processing

Fully configurable processing pipeline

7 Msamples/s

Programmable oversampling

Multiple processing algorithms

Trigger output and input

UART communication interface

Optional adapter to the 1.27 mm standard header

Optional USB adapter (AMS-DIG-USB)

Compatible with the AMS3140-01 and its accessories

Rapid prototyping and proof-of-concept development

Designed for easy integration with the AMS detection module series and the AMS accessories

Python and C libraries including source code

Applications

Portable devices

Temperature and gas sensors

Embedded systems

Rapid prototyping

Specification

(+3.3 V supply, Tamb = 20ºC, unless otherwise noted)

Parameter Value Unit
Min. Typ. Max.
Sampling rate, fs 7 MHz
ADC resolution 16 bits
Processing resolution 32 bits
Default UART bitrate 1 Mbits/s

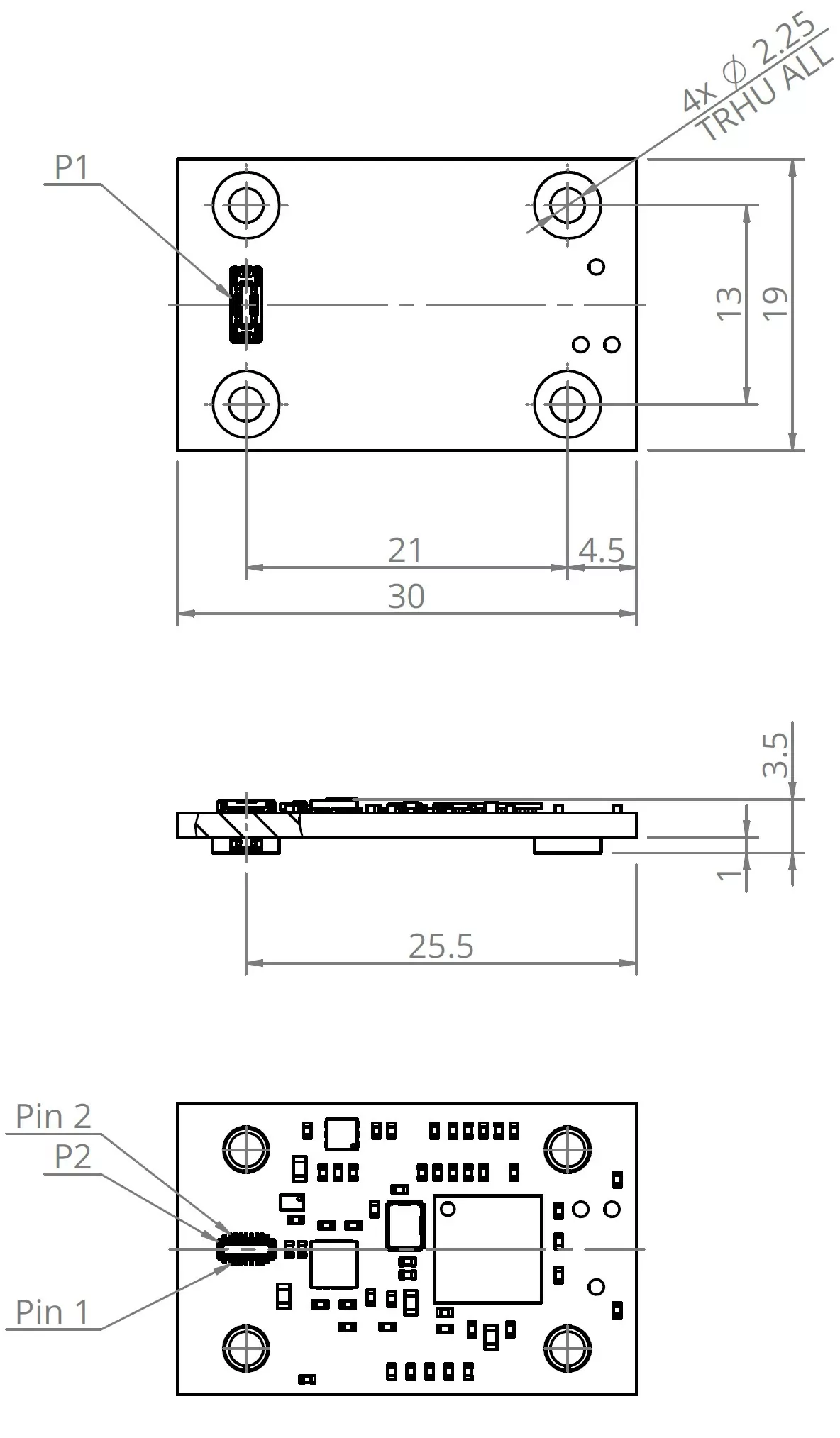

Mechanical layout

(Unit: mm)
