InAs and InAsSb IR Detectors
Photovoltaic infrared detectors in which the semiconductor element is made of InAs, InAsSb or superlattice material.
These detectors are cadmium and mercury free. As a result, the detectors comply with the RoHS directive and can be used in the consumer market.
InAs and InAsSb IR Detectors
Filtering
| Image | Name | Active element material | Cooling | Immersion |
Optical area
?
Ao, mm×mm dA, mm |
Cut-on wavelength (10%)
?
λcut-on, μm |
Peak wavelength
?
λpeak, μm |
Cut-off wavelength (10%)
?
λcut-off, μm |
Current responsivity
?
Ri (λpeak), A/W |
Detectivity
?
D* (λpeak, f = 20 kHz), cm⋅Hz1/2/W |
Time constant
?
τ, ns |
Package | Window | Datasheet | Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PVA-3-1x1-TO39-NW-90 | InAs | no | no | 1×1 | 2.3 | 3.1 | 3.5 | 1.1 | 7.0×10\(^{9}\) | 35 | TO39 | no |
|
|
 |
PVA-3-d1.2-SMD-NW/pAl2O3-115 | InAs | no | no | d1.2 | 1.3 | 2.9 | 3.6 | 0.88 | 6.4×10\(^{9}\) | 35 | SMD | no, pAl2O3 |
|
|
 |
PVA-3-d1.2-SMD-BPF2920-B070-115 | InAs | no | no | d1.2 | - | 2.92 | - | 0.73 | 5.3×10\(^{9}\) | 35 | SMD | BPF2920 |
|
|
|
PVA-3-d1.2-SMD-BPF3330-B150-115 | InAs | no | no | d1.2 | - | 3.33 | - | 0.62 | 4.5×10\(^{9}\) | 35 | SMD | BPF3330 |
|
|
 |
PVIA-4TE-4-1x1-TO8-wAl2O3-36 | InAsSb | 4TE | yes | 1×1 | 2.0 | 3.5 | 4.7 | 1.7 | 3.7×10\(^{11}\) | 30 | TO8 | wAl2O3 |
|
|
|
PVA-5-d1-SMD-NW/pAl2O3-115 | InAsSb | no | no | d1 | 2.0 | 4.5 | 5.6 | 0.35 | 2.0×10\(^{9}\) | 30 | SMD | no, pAl2O3 |
|
|
|
PVA-5-d1-SMD-BPF3900-B090-115 | InAsSb | no | no | d1 | - | 3.9 | - | 0.22 | 1.2×10\(^{9}\) | 30 | SMD | BPF3900 |
|
|
|
PVA-5-d1-SMD-BPF4260-B090-115 | InAsSb | no | no | d1 | - | 4.26 | - | 0.24 | 1.3×10\(^{9}\) | 30 | SMD | BPF4260 |
|
|
 |

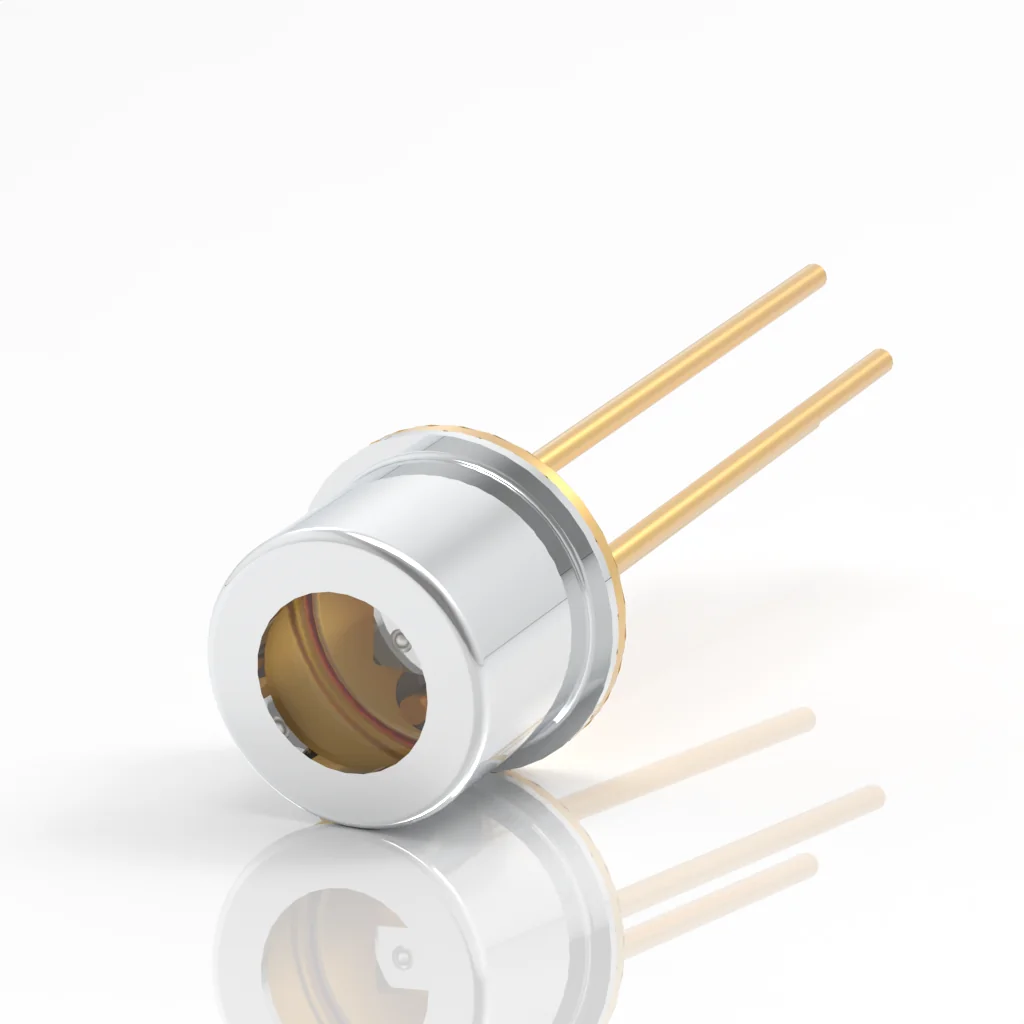

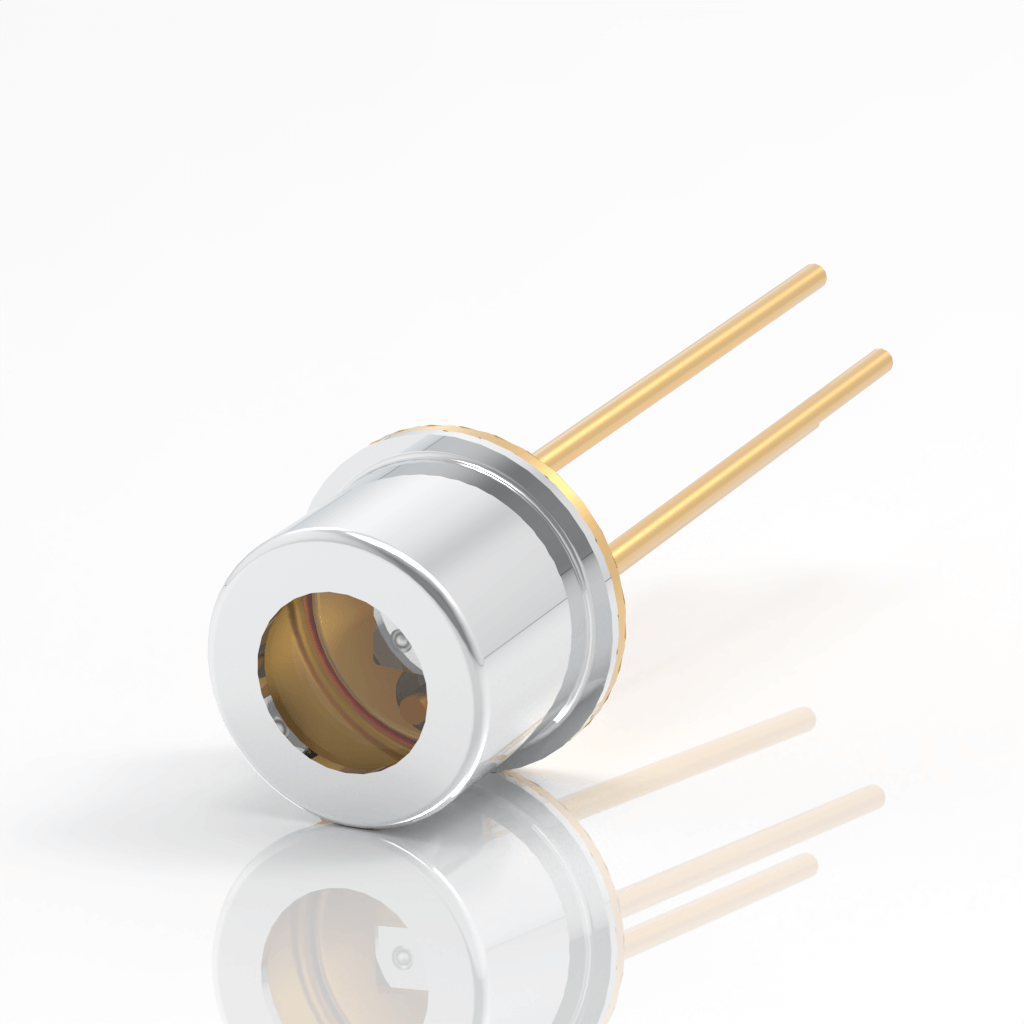

PVIA-5-0.3x0.3-TO46-pAl2O3-40 | InAsSb | no | yes | 0.3×0.3 | 1.7 | 4.0 | 5.4 | 1.0 | 4.0×10\(^{9}\) | 20 | TO46 | pAl2O3 |
|
|
 |
PVIA-5-1x1-TO39-NW-36 | InAsSb | no | yes | 1×1 | 2.0 | 3.9 | 5.6 | 1.8 | 2.8×10\(^{10}\) | 30 | TO39 | no |
|
|
 |
PVMA-1TE-5-1x1-TO39-pSiAR-70 | InAsSb | 1TE | no | 1×1 | 2.0 | 4.0 | 5.5 | 0.18 | 1.0×10\(^{9}\) | 20 | TO39 | pSiAR |
|
|
 |
PVA-3TE-5-AF1x1AR-TO8-wAl2O3AR-70 | InAsSb | 3TE | no | 1×1 | 1.64 | 4.0 | 5.8 | 2.0 | 1.4×10\(^{10}\) | 124 | TO8 | wAl2O3AR |
|
|
|
PVMA-1TE-6-1x1-TO39-pSiAR-70 | InAsSb | 1TE | no | 1×1 | 2.0 | 4.4 | 6.6 | 0.18 | 4.3×10\(^{9}\) | 40 | TO39 | pSiAR |
|
|
|
PVIA-10-1x1-TO39-NW-36 | InAsSb | no | yes | 1×1 | 1.8 | 7.1 | 12.0 | 0.14 | 7.7×10\(^{8}\) | 1.65 | TO39 | no |
|
|
 |
PVIA-4TE-10-1x1-TO8-wZnSeAR-36 | InAsSb | 4TE | yes | 1×1 | 1.8 | 6.7 | 11.3 | 0.55 | 1.0×10\(^{10}\) | 3 | TO8 | wZnSeAR |
|
|
|
PVIA-4TE-13-1x1-TO8-wZnSeAR-36 | InAsSb | 4TE | yes | 1×1 | 2.0 | 10.5 | 13.6 | 0.38 | 3.0×10\(^{9}\) | 3 | TO8 | wZnSeAR |
|
InAs and InAsSb IR Detectors
Filter results
Name
Active element material
Cooling
Immersion
Optical area
Ao, mm×mm
dA, mm
Cut-on wavelength (10%)
λcut-on, μm
Peak wavelength
λpeak, μm
Cut-off wavelength (10%)
λcut-off, μm
Current responsivity
Ri (λpeak), A/W
Detectivity
D* (λpeak, f = 20 kHz), cm⋅Hz1/2/W
Time constant
τ, ns
Package
Window
Datasheet
Material
InAs
Cooling
no
Immersion
no
Optical area
1×1
Cut-on wavelength cut-on
2.3
Peak wavelength
3.1
Cut-off wavelength cut-off
3.5
Responsivity
1.1
Detectivity
7.0×10\(^{9}\)
Time constant
35
Package
TO39
Window
no
Material
InAs
Cooling
no
Immersion
no
Optical area
d1.2
Cut-on wavelength cut-on
1.3
Peak wavelength
2.9
Cut-off wavelength cut-off
3.6
Responsivity
0.88
Detectivity
6.4×10\(^{9}\)
Time constant
35
Package
SMD
Window
no, pAl2O3
Material
InAs
Cooling
no
Immersion
no
Optical area
d1.2
Cut-on wavelength cut-on
-
Peak wavelength
2.92
Cut-off wavelength cut-off
-
Responsivity
0.73
Detectivity
5.3×10\(^{9}\)
Time constant
35
Package
SMD
Window
BPF2920
Material
InAs
Cooling
no
Immersion
no
Optical area
d1.2
Cut-on wavelength cut-on
-
Peak wavelength
3.33
Cut-off wavelength cut-off
-
Responsivity
0.62
Detectivity
4.5×10\(^{9}\)
Time constant
35
Package
SMD
Window
BPF3330
Material
InAsSb
Cooling
4TE
Immersion
yes
Optical area
1×1
Cut-on wavelength cut-on
2.0
Peak wavelength
3.5
Cut-off wavelength cut-off
4.7
Responsivity
1.7
Detectivity
3.7×10\(^{11}\)
Time constant
30
Package
TO8
Window
wAl2O3
Material
InAsSb
Cooling
no
Immersion
no
Optical area
d1
Cut-on wavelength cut-on
2.0
Peak wavelength
4.5
Cut-off wavelength cut-off
5.6
Responsivity
0.35
Detectivity
2.0×10\(^{9}\)
Time constant
30
Package
SMD
Window
no, pAl2O3
Material
InAsSb
Cooling
no
Immersion
no
Optical area
d1
Cut-on wavelength cut-on
-
Peak wavelength
3.9
Cut-off wavelength cut-off
-
Responsivity
0.22
Detectivity
1.2×10\(^{9}\)
Time constant
30
Package
SMD
Window
BPF3900
Material
InAsSb
Cooling
no
Immersion
no
Optical area
d1
Cut-on wavelength cut-on
-
Peak wavelength
4.26
Cut-off wavelength cut-off
-
Responsivity
0.24
Detectivity
1.3×10\(^{9}\)
Time constant
30
Package
SMD
Window
BPF4260
Material
InAsSb
Cooling
no
Immersion
yes
Optical area
0.3×0.3
Cut-on wavelength cut-on
1.7
Peak wavelength
4.0
Cut-off wavelength cut-off
5.4
Responsivity
1.0
Detectivity
4.0×10\(^{9}\)
Time constant
20
Package
TO46
Window
pAl2O3
Material
InAsSb
Cooling
no
Immersion
yes
Optical area
1×1
Cut-on wavelength cut-on
2.0
Peak wavelength
3.9
Cut-off wavelength cut-off
5.6
Responsivity
1.8
Detectivity
2.8×10\(^{10}\)
Time constant
30
Package
TO39
Window
no
Material
InAsSb
Cooling
1TE
Immersion
no
Optical area
1×1
Cut-on wavelength cut-on
2.0
Peak wavelength
4.0
Cut-off wavelength cut-off
5.5
Responsivity
0.18
Detectivity
1.0×10\(^{9}\)
Time constant
20
Package
TO39
Window
pSiAR
Material
InAsSb
Cooling
3TE
Immersion
no
Optical area
1×1
Cut-on wavelength cut-on
1.64
Peak wavelength
4.0
Cut-off wavelength cut-off
5.8
Responsivity
2.0
Detectivity
1.4×10\(^{10}\)
Time constant
124
Package
TO8
Window
wAl2O3AR
Material
InAsSb
Cooling
1TE
Immersion
no
Optical area
1×1
Cut-on wavelength cut-on
2.0
Peak wavelength
4.4
Cut-off wavelength cut-off
6.6
Responsivity
0.18
Detectivity
4.3×10\(^{9}\)
Time constant
40
Package
TO39
Window
pSiAR
Material
InAsSb
Cooling
no
Immersion
yes
Optical area
1×1
Cut-on wavelength cut-on
1.8
Peak wavelength
7.1
Cut-off wavelength cut-off
12.0
Responsivity
0.14
Detectivity
7.7×10\(^{8}\)
Time constant
1.65
Package
TO39
Window
no
Material
InAsSb
Cooling
4TE
Immersion
yes
Optical area
1×1
Cut-on wavelength cut-on
1.8
Peak wavelength
6.7
Cut-off wavelength cut-off
11.3
Responsivity
0.55
Detectivity
1.0×10\(^{10}\)
Time constant
3
Package
TO8
Window
wZnSeAR
Material
InAsSb
Cooling
4TE
Immersion
yes
Optical area
1×1
Cut-on wavelength cut-on
2.0
Peak wavelength
10.5
Cut-off wavelength cut-off
13.6
Responsivity
0.38
Detectivity
3.0×10\(^{9}\)
Time constant
3
Package
TO8
Window
wZnSeAR
