Configurable Line

A full range of preamplifiers dedicated to each type of VIGO Photonics infrared detectors. The Configurable Line of modules enables the selection of the active area, type of preamplifier and bandwidth of the detection module. This makes it possible to adapt the module to the needs of your own application.

Configurable

Filter results

close-icon


Name

Main feature

Low cut-off frequency flo

?

Hz

Low cut-off frequency f

?

Hz

Transimpedance Ki

?

V/A

Radiator / fan

TEC controller

Mounting hole

Datasheet

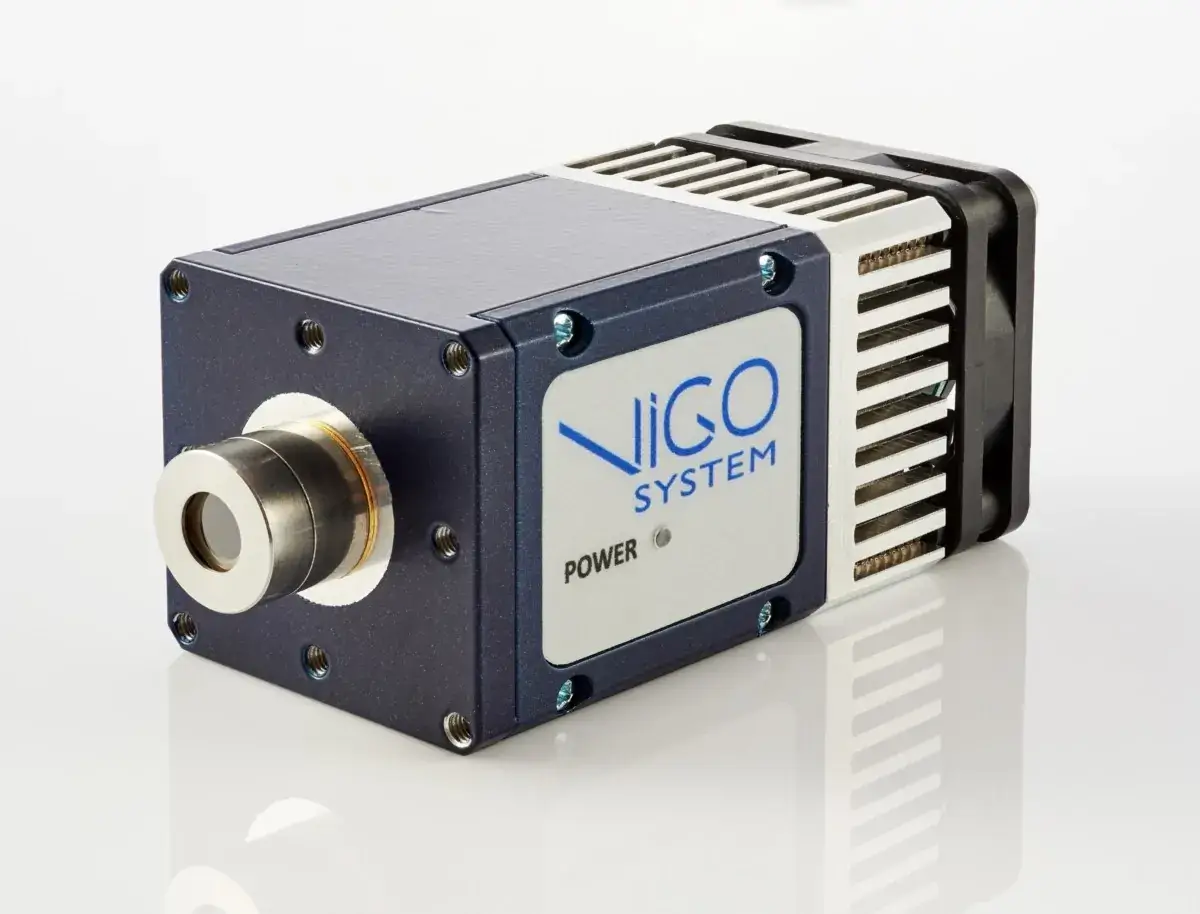

Main feature

ALL-IN-ONE

Low cut-off frequency

DC, 10, 100, 1k, 10k

High cut-off frequency

100k, 1M, 10M, 100M, 250M

Transimpedance Ki

up to 200k (fixed)

Radiator

on board

TEC controller

on board

Mounting hole

M4

Main feature

PROGRAMMABLE

Low cut-off frequency

DC/10

High cut-off frequency

150k/1.5M/20M; 1.5M/15M/200M

Transimpedance Ki

2.5k – 150k; 0.5k – 30k; (digitally adjustable)

Radiator

on board

TEC controller

PTCC-01 obligatory

Mounting hole

M4

Main feature

STANDARD

Low cut-off frequency

DC, 10, 100, 1k, 10k

High cut-off frequency

100k, 1M, 10M, 100M, 250M

Transimpedance Ki

up to 200k (fixed)

Radiator

on board

TEC controller

PTCC-01 necessary

Mounting hole

M4

Main feature

FAST

Low cut-off frequency

1k, 10k

High cut-off frequency

1G

Transimpedance Ki

up to 8.5k (fixed)

Radiator

on board

TEC controller

PTCC-01 necessary

Mounting hole

M4

Main feature

OEM

Low cut-off frequency

DC, 10, 100, 1k, 10k

High cut-off frequency

100k, 1M, 10M, 100M, 250M

Transimpedance Ki

up to 100k (tunable)

Radiator

external heatsink necessary

TEC controller

PTCC-01 necessary

Mounting hole

none

Main feature

OEM

Low cut-off frequency

DC, 10, 100, 1k, 10k

High cut-off frequency

100k, 1M, 10M, 100M, 250M

Transimpedance Ki

up to 100k (tunable)

Radiator

not necessary

TEC controller

not necessary

Mounting hole

none
