Small-size IR detection module based on HgCdTe TE cooled optically immersed phoconductive detector
SM-I-12
SM-I-12 is an ultra-small IR detection module. Thermoelectrically cooled, optically immersed photoconductive detector, based on HgCdTe heterostructure (PCI-3TE-12-1×1-TO8-wZnSeAR-36) is integrated with transimpedance, AC coupled preamplifier. There is a possibility to manually adjust gain of the signal. 3° wedged zinc selenide anti-reflection coated window prevents unwanted interference effects. SM-I-12 is easy to assembly in space limited measuring systems of FTIR applications.
Features
Spectral range: 2.0 to 13.8 μm
Frequency bandwidth: 10 Hz to 1 MHz
Adjustable gain
Small size
Quantity discounted price
Fast delivery
No minimum order quantity required
Applications
FTIR spectroscopy
Detection module configuration
| Detector symbol | PCI-3TE-12-1×1-TO8-wZnSeAR-36 |
| Detector type | photoconductive |
| Active element material | epitaxial HgCdTe heterostructure |
| Optical area, AO | 1 mm × 1 mm |
| Immersion | hyperhemisphere |
| Cooling | 3TE |
| Acceptance angle, Φ | ~36 deg. |
| Window | wZnSeAR
(3 deg. wedged zinc selenide anti-reflection coating) |
| Preamplifier symbol | SIP |
| Preamplifier type | transimpedance |
| Signal output socket | MMCX |
| Power supply and TEC control socket | AMP2×4 (part No. 280389-2) |
| Mounting hole | no |
| Built-in fan | no
(external heatsink necessary) |
| Built-in TEC controller | no |
Specification
(Tamb = 293 K, Rload = 50 Ω, unless otherwise noted)
| Parameter | Value | Unit | ||
| Min. | Typ. | Max. | – | |
| Active element temperature, Tchip | – | 210 | – | K |
| Cut-on wavelength, λcut-on (10%) | – | – | 2.0 | μm |
| Peak wavelength, λpeak | 9.2 | 10.0 | 10.2 | μm |
| Cut-off wavelength, λcut-off (10%) | 13.8 | – | – | μm |
| Detectivity, D* (λpeak, f = 20 kHz) | 2.5×109 | – | – | cm·Hz1/2/w |
| Detectivity, D* (λopt, f = 20 kHz) | 1.3×109 | – | – | cm·Hz1/2/w |
| Voltage responsivity, Rv (λpeak, Ki = 100 kV/A) | 1.35×105 | – | – | V/W |
| Voltage responsivity, Rv (λopt, Ki = 100 kV/A) | 6.30×104 | – | – | V/W |
| Voltage responsivity, Rv (λpeak, Ki = 55 kV/A) | 7.45×104 | – | – | V/W |
| Voltage responsivity, Rv (λopt, Ki = 55 kV/A) | 3.45×104 | – | – | V/W |
| Low cut-off frequency, flo | – | 10 | – | Hz |
| High cut-off frequency, fhi | 1 | – | – | MHz |
| Output impedance, Rout | – | 50 | – | Ω |
| Output voltage swing, Vout (Rload = 1 MΩ) | -10 | – | +10 | V |
| Output voltage offset, Voff | – | – | ±20 | mV |
| Module power supply voltage (positive), +Vsup | – | +15 | – | V |
| Module power supply voltage (negative), -Vsup | – | -15 | – | V |

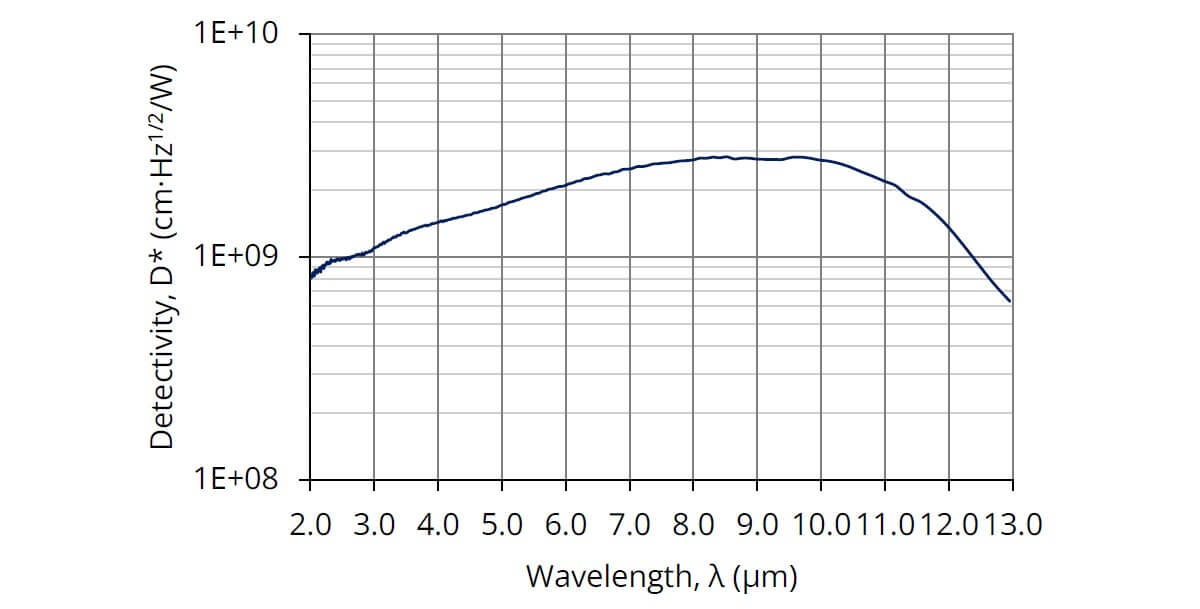

Spectral response
(Typ., Tamb = 293 K)

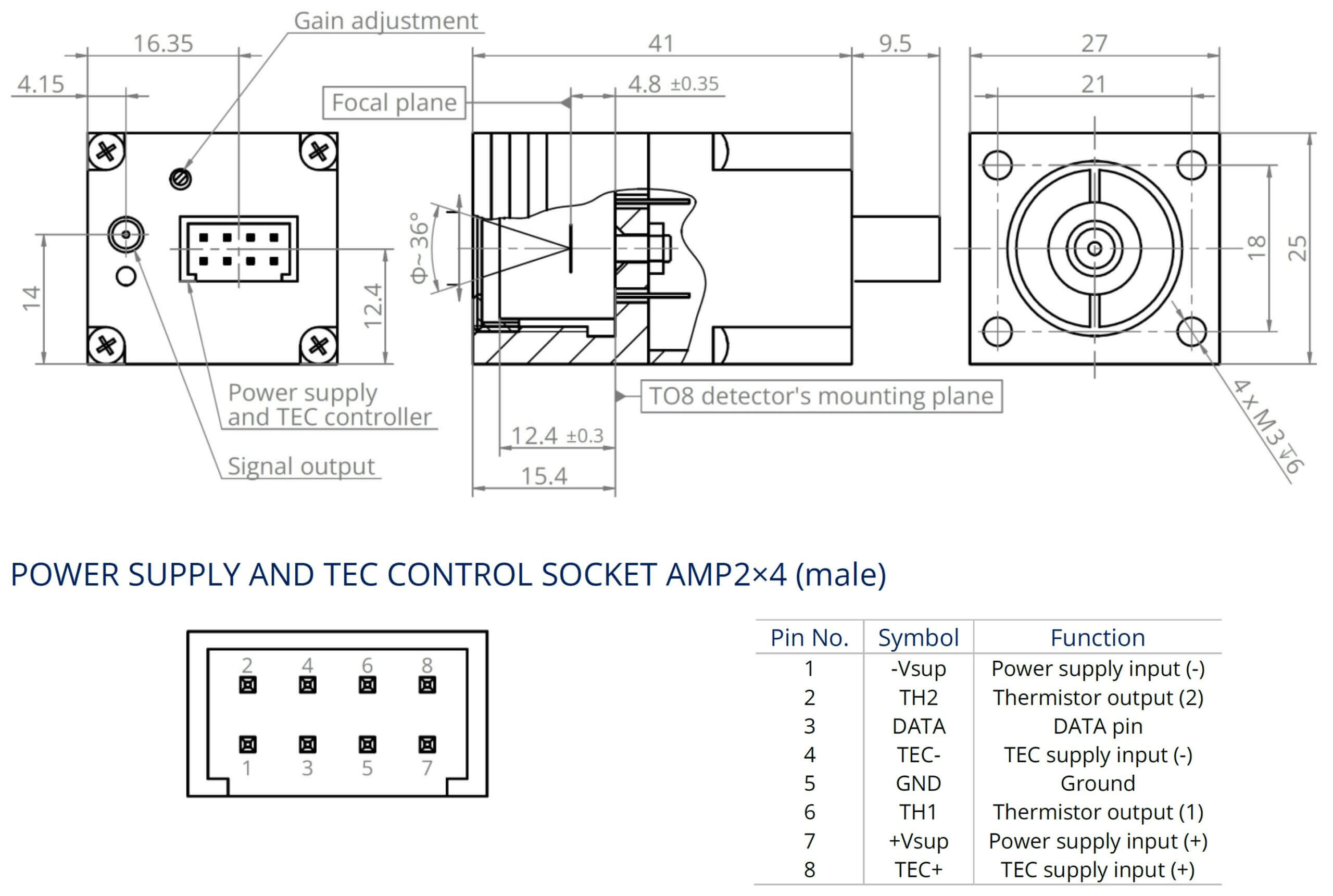

Mechanical layout
(Unit: mm)
Access to file
Access to this file is limited. In order to download it, please provide all the information and submit the form.
