HgCdTe (MCT) Detection Module

UM-10.6

2.0 – 12.0 µm, DC – 70 MHz, with photovoltaic multiple junction detector

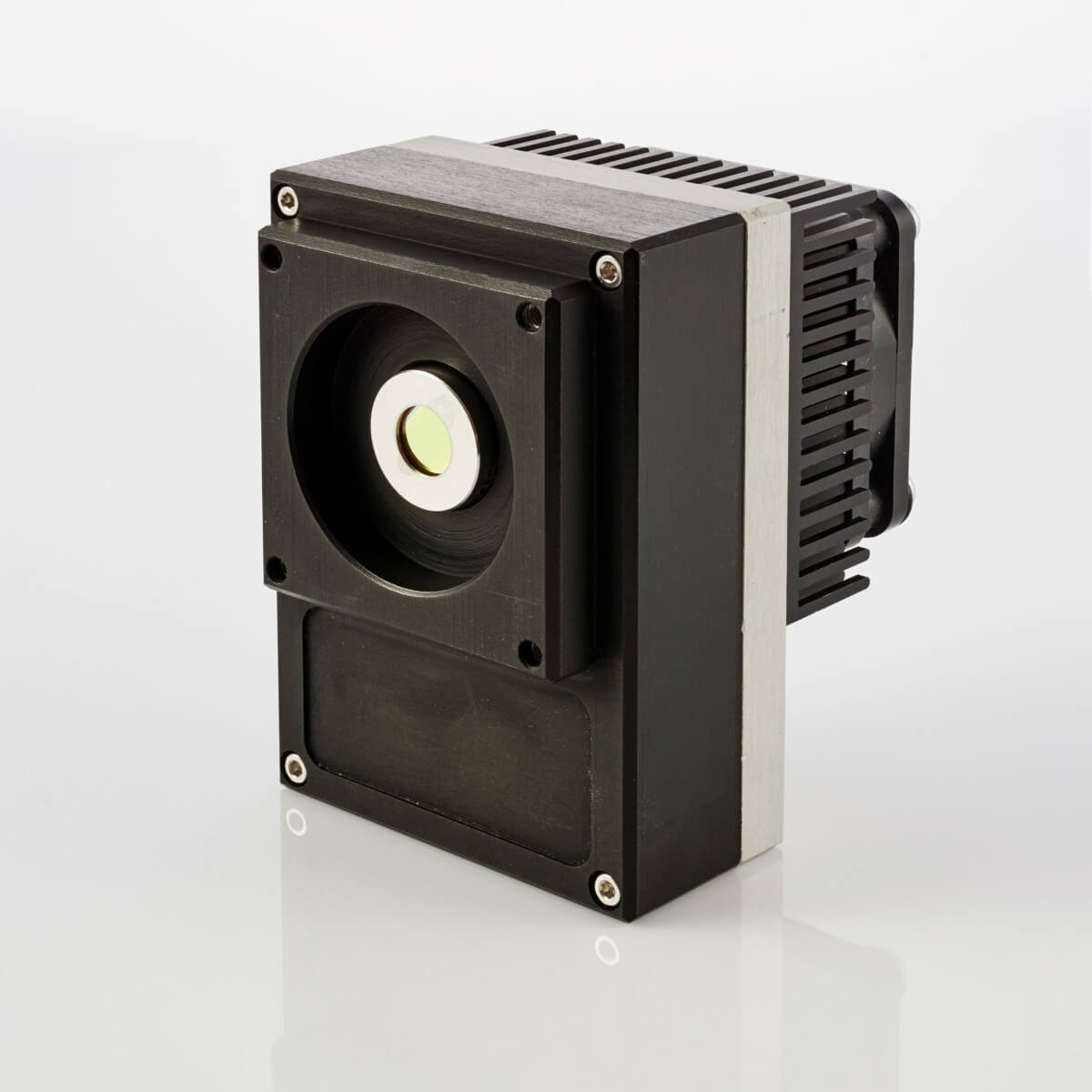

UM-10.6 is an universal „all-in-one” IR detection module. Thermoelectrically cooled photovoltaic detector, based on HgCdTe heterostructure, is integrated with transimpedance, DC coupled preamplifier, a fan and a thermoelectric cooler controller in a compact housing. 3° wedged zinc selenide anti-reflection coated window prevents unwanted interference effects. UM-10.6 detection module is very convenient and user‑friendly device, thus can be easily used in a variety of LWIR applications.

ORDER

See specification

Features

Integrated TEC controller and fan

Single power supply

DC monitor

Sensitive to IR radiation polarisation

Optimised for effective heat dissipation

Compatible with optical accessories

Cost effective OEM version available

Universal and flexible

Quantity discounted price

Fast delivery

Applications

Gas detection, monitoring and analysis

CO2 laser (10.6 µm) measurements

Laser power monitoring and control

Laser beam profiling and positioning

Laser calibration

Specification (Ta= 20°C)

Parameter
Typical value
Optical parameters
Cut-on wavelength λcut-on (10%) µm
≤2.0
Peak wavelength λpeak, µm
9.3±2.0
Optimum wavelength λopt, µm
10.6
Cut-off wavelength λcut-off (10%) µm
≥12.0
Detectivity D*(λpeak), cm⋅Hz1/2/W
≥5.0×107
Detectivity D*(λopt), cm⋅Hz1/2/W
≥4.0×107
Output noise density vn(1 MHz), nV/Hz1/2
≤380
Electrical parameters
Voltage responsivity Rvpeak), V/W
≥1.6×102
Voltage responsivity Rvopt), V/W
≥1.0×102
Low cut-off frequency flo, Hz
DC
High cut-off frequency fhi, Hz ≥70M
Output impedance Rout, Ω 50
Output voltage swing Vout, V ±2  (RL = 1 MΩ*))
Output voltage offset Voff, V
max ±20
Power supply voltage V sup, V
+5
DC monitor (approx. 0 V offset)
Voltage responsivity Rvpeak), V/W
≥3.6×101
Voltage responsivity Riopt), V/W
≥2.4×101
Low cut-off frequency flo, Hz
DC
High cut-off frequency fhi, Hz
150k
Other information
Active element material
epitaxial HgCdTe heterostructure
Active area A, mm×mm
1×1
Window
wZnSeAR
Acceptance angle, Φ
~70°
Ambient operating temperature Ta, °C
10 to 30
Signal output socket
SMA
DC monitor socket
SMA
Power supply socket
DC 2.2/5.5
Mounting hole
M4
Fan
yes
*) R – load resistance

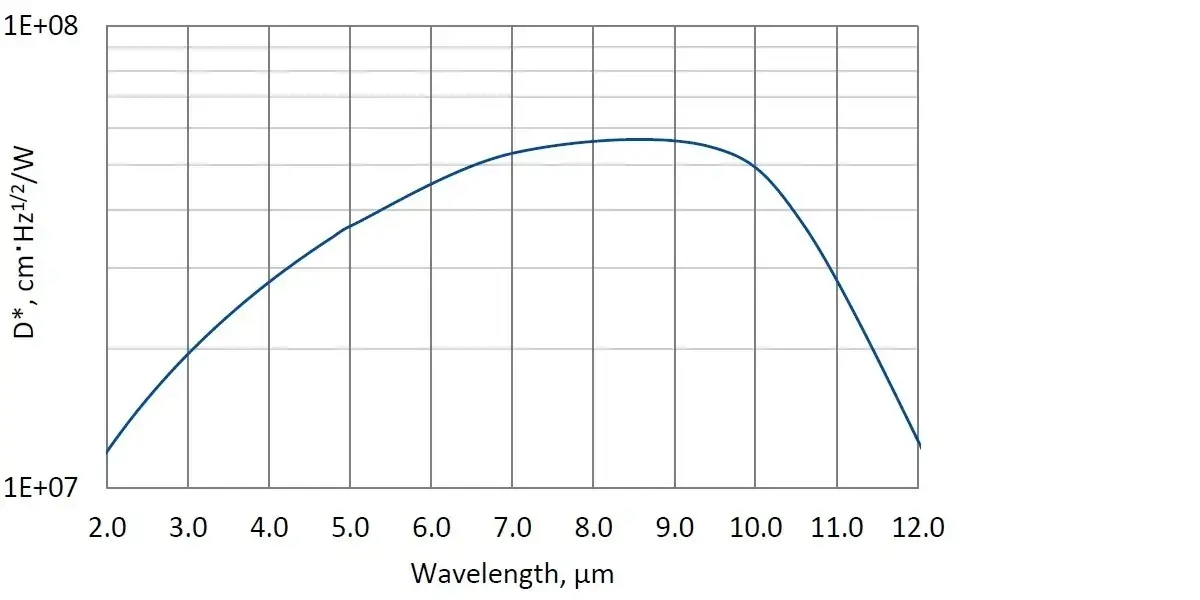

Spectral response (Ta = 20°C)

UM-10.6-1

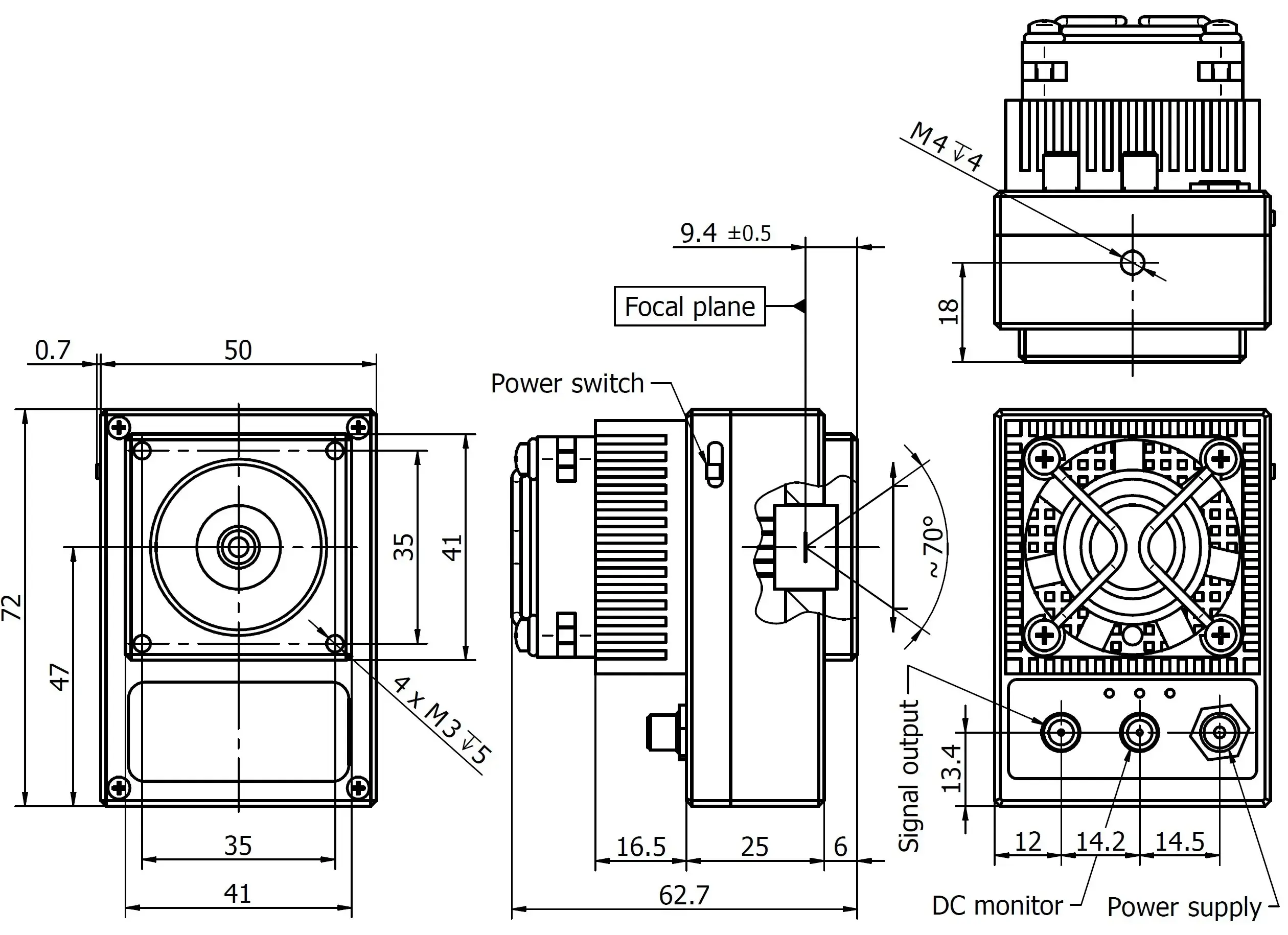

Mechanical layout, mm

UM-10.6-1-1
