ProgrammablePTCC-01 series

Thermoelectric cooler controller

PTCC-01 is a series of programmable, precision low-noise thermoelectric cooler controllers. They are designed to operate with VIGO IR detection modules: LabM-I-6, LabM-I-10.6 and other devices containing TE cooled detectors and preamplifiers: PIP, MIP, FIP, SIP-TO8.

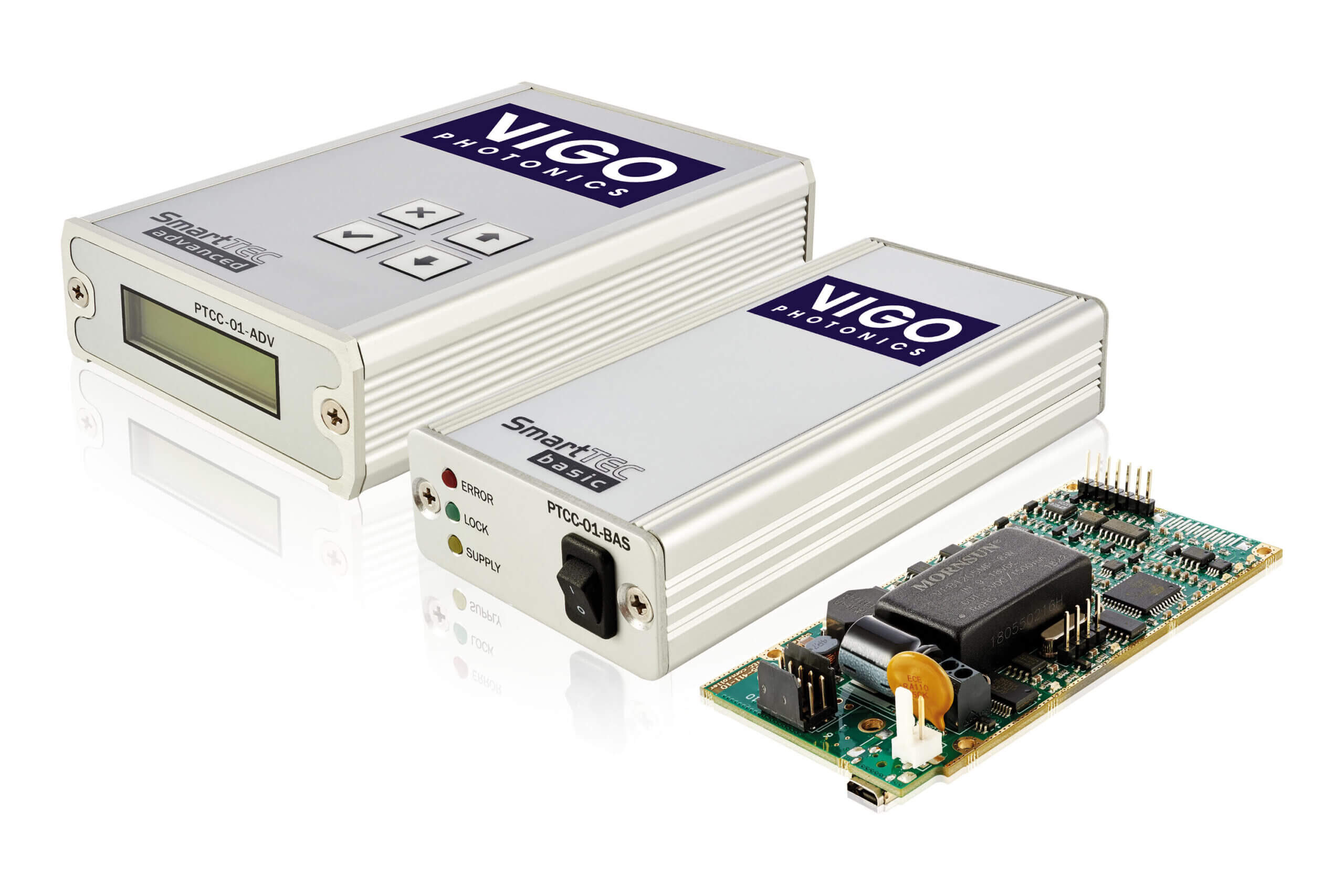

Available options

PTCC-01-ADV

(advanced)

PTCC-01-BAS

(basic)

  • TEC controller and preamplifier power supply encapsulated in a small size package.
  • Configurable by built-in function keys or PC software.
  • Status LCD indicator.
  • TEC controller and preamplifier power supply encapsulated in a small size package.
  • Configurable by PC software.
  • Status LED indicator.
PTCC-01-OEM

(oem)

  • TEC controller and preamplifier power supply without package.
  • Configurable by PC software.
  • Status LED indicator and status/data connector.

Specification (Ta = 20°C)

Parameter
Typical value
 Conditions, remarks
Temperature stability, K ±0.01
Temperature readout stability, mK
max 1.0
Detector temperature settling time, s
25

45

60

2TE

3TE

4TE

Maximum TEC output current, A
1.20

0.45

0.40

2TE

3TE

4TE

Output voltage range, V
min 3.0

max 14.5


Power supply voltage Vsup, VDC min 9.0

max 16.0

Power supply current Isup, mA 500 ITEC = 0.45 A, UTEC = 7.5 V
Series resistance of the connecting cable, Ω
1 total resistance of the wires supplying TEC element
Ambient operating temperature, °C
5 to 45
Storage temperature, °C
-20 to 70
IR module socket
DB9 (female)

DUBOX2×5 (male)

D-sub 9 pin (PTCC-01-ADV, PTCC-01-BAS)

PTCC-01-OEM

Power supply socket
DC 2.1/5.5

KK2

PTCC-01-ADV, PTCC-01-BAS

PTCC-01-OEM

Weight, g
51±5

155±5

190±5

PTCC-01-OEM

PTCC-01-BAS

PTCC-01-ADV
