HgCdTe (MCT) Photoconductive Detector

PC-5

1.0 – 5.4 µm, ambient temperature

PC-5 is uncooled IR photoconductive detector based on sophisticated HgCdTe heterostructure for the best performance and stability. The device is optimized for the maximum performance at λopt = 5.0 μm. The device should operate in optimum bias voltage and current readout mode. Performance at low frequencies is reduced due to 1/f noise.

See specification

Features

High performance in the 1.0 – 5.4 µm spectral range

Ambient temperature operation

Active area from 50×50 µm^2 to 4×4 mm^2

Long lifetime and MTBF

Stability and reliability

1/f noise

Specification (Ta = 20°C)

Parameter
PC-5
Active element material
epitaxial HgCdTe heterostructure
Optimum wavelength λopt, µm
5.0
Detectivity D*(λpeak, 20 kHz), cm⋅Hz1/2/W
≥1.5×109
Detectivity D*(λopt, 20 kHz), cm⋅Hz1/2/W
≥1.0×109
Current responsivity-active area length product Riopt)·L, A·mm/W
≥0.07
Time constant τ, ns
≤5000
1/f noise corner frequency fc, Hz
≤10k
Bias voltage-active area length ratio Vb/L, V/mm
≤4.5
Resistance R, Ω
≤1200
Active area A, mm×mm
0.05×0.05, 0.1×0.1, 0.25×0.25, 0.5×0.5, 1×1, 2×2, 3×3
Package
TO39 BNC
Acceptance angle, Φ
~90° ~102° *)

~124° **)

Window
none

*) Aperture C = Ø4 mm.

**) Aperture C = Ø6 mm.

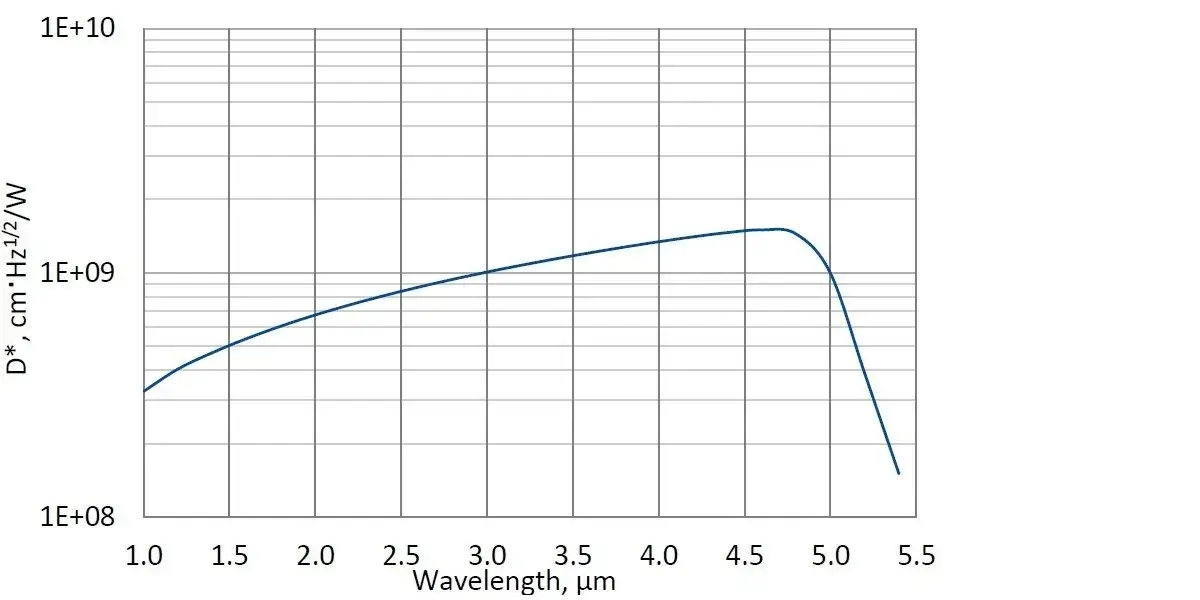

Spectral response (Ta = 20°C)

PC-5-1

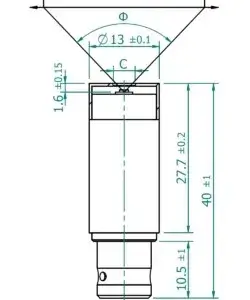

Mechanical layout, mm

BNC-non-imm-1-250x300-1

BNC package

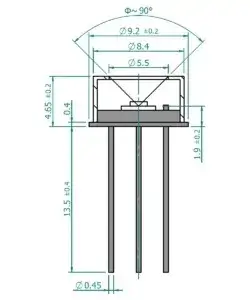

TO39-non-imm-2-250x300-1

TO39 package
