Small-size, for uncoold detectors, transimpedance amplifierSIP-TO39 series

SIP-TO39 is a series of small-size, transimpedance, AC or DC coupled preamplifiers. They are designed to operate with either biased or non biased IR detectors. They are dedicated for integration with uncooled detectors in TO39 package. SIP-TO39 does not require any external heatsink. There is a possibility to adjust gain (devices with a frequency bandwidth up to 100 MHz).

Features

Compatible with VIGO uncooled IR detectors in the TO39 package

Frequency bandwidth: up to 250 MHz

Small size

AC or DC coupled

External power supply required

Compatible with optical accessories

Adjustable gain (optional, modules with a frequency bandwidth of up to 100 MHz)

Specification (Tamb = 293 K)

Parameter
Conditions, remarks
Value
 Unit
Low cut-off frequency, flo   DC, 10, 100, 1k, 10k  Hz
High cut-off frequency, fhi
100k, 1M, 10M, 100M, 250M  Hz
Transimpedance, Ki
Tunable, only the the SIP-xx-xx-TO39-G version up to 100 kV/A
Transimpedance range, Ki max / Ki min
Depending on the fhi, only the SIP-xx-xx-TO39-G version up to 5 -
Output impedance, Rout
50 Ω
Output voltage swing, Vout fhi ≤ 1 MHz, Rload = 1 MΩ

fhi > 1 MHz, Rload = 50 Ω

±10

±1

V
Output voltage offset, Voff
max. ±20
 mV
Power supply voltage, Vsup
fhi ≤ 1 MHz, Rload = 1 MΩ

fhi > 1 MHz, Rload = 50 Ω

±15

±9

V
Power supply current, Isup max ±50 mA
Weight 52 g

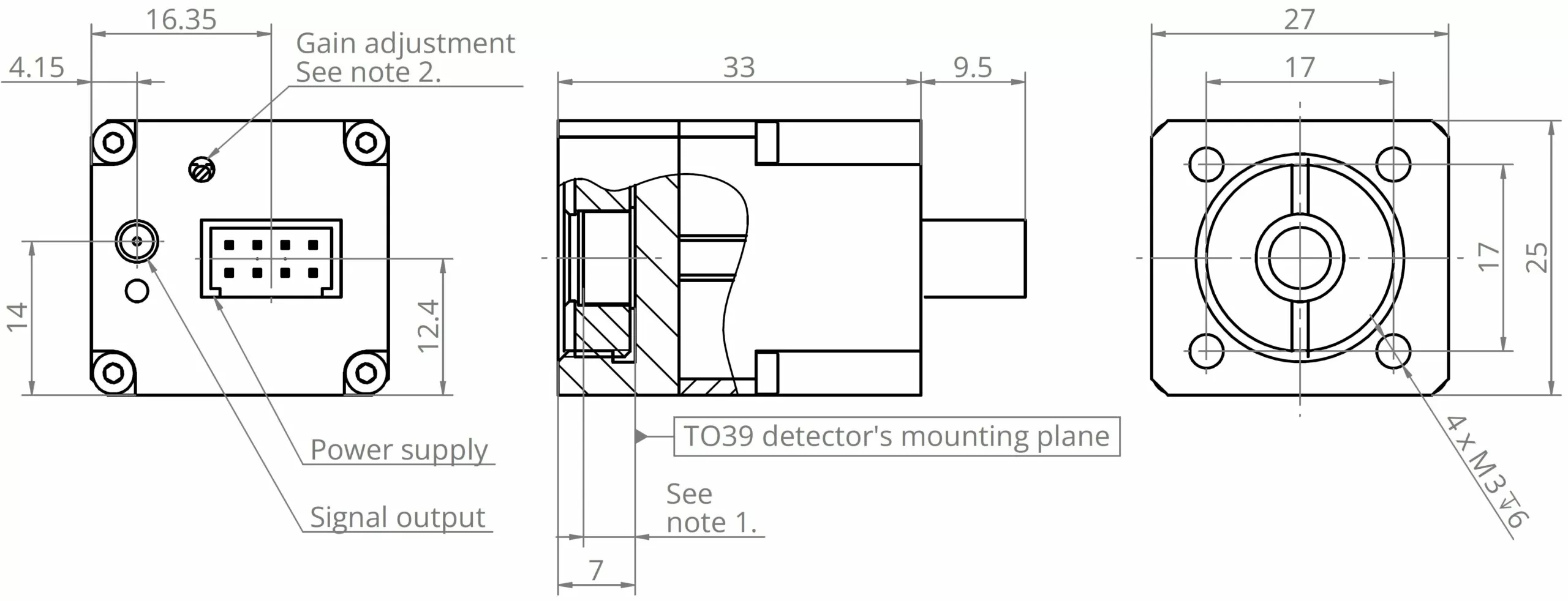

Mechanical layout (unit: mm)

Technical drawing of an electronic component with labeled dimensions, mounting holes, and connector ports. Notes mention "gain adjustment," "power supply," "signal output," and "TO39 detector's mounting plane." Measurements are in millimeters.

Note 1. TO39 detector dimensions in the TO39 package technical drawings. Note 2. Only for the SIP-xx-xx-TO39-G version.
