“All-in-one” transimpedance preamplifierAIP series

AIP is a new generation of transimpedance, AC or DC coupled preamplifiers. It is designed to operate with either biased or non-biased VIGO detectors. AIP is „all‑in-one” device – a preamplifier is integrated with a fan and a thermoelectric cooler controller in a compact housing. It is very convenient and user‑friendly device, thus can be easily used in a variety of applications.


Integrated TEC controller and fan

Frequency bandwidth: up to 250 MHz

Single power supply

DC monitor

Designed for effective heat dissipation

Compatible with optical accessories

Cost-effective OEM version available

Types of VIGO detectors that can be integrated with AIP preamplifier

Photoconductive: PC-2TE, PC-3TE, PC-4TE

Photoconductive optically immersed: PCI-2TE, PCI-3TE, PCI-4TE

Photovoltaic: PV-2TE, PVA-2TE, PV-3TE, PV-4TE

Photovoltaic optically immersed: PVI-2TE, PVIA-2TE, PVI-3TE, PVI-4TE

Photovoltaic multi-junction: PVM-2TE

Photovoltaic multiple junction optically immersed: PVMI-2TE, PVMI-3TE, PVMI-4TE


(Tamb = 293 K)

 Conditions, remarks
Low cut-off frequency, flo DC, 10 Hz, 100 Hz, 1 kHz, 10 kHz
High cut-off frequency, fhi
100 kHz, 1 MHz, 10 MHz, 100 MHz, 250 MHz
Transimpedance, Ki
up to 200 kV/A Fixed
Output impedance, Rout
50 Ω
Output voltage swing, Vout ±1.8 V

±0.7 V

fhi ≤ 1 MHz, Rload = 1 MΩ

fhi >1 MHz, Rload = 50 Ω

Output voltage offset, Voff
max. ±20 mV*)
Power supply voltage, Vsup
+5 V

+12 V

With 2TE and 3TE cooled detectors

With 4TE cooled detectors

Power supply current, Isup max. 1.2 A

max. 0.5 A

max. 0.45 A

With 2TE cooled detectors

With 3TE cooled detectors

With 4TE cooled detectors

Ambient operating temperature, Tamb
10 to 30ºC
Signal output socket
SMA RF output
DC output socket
SMA DC monitor
Supply socket
DC 2.1/5.5

DC 2.5/5.5

Vsup = +12  V

Vsup = +5  V

Mounting hole
Built-in fan
Built-in TEC controller
*)  Measured with equivalent resistor at the input instead of the detector, it is to avoid the environmental thermal radiation impact.

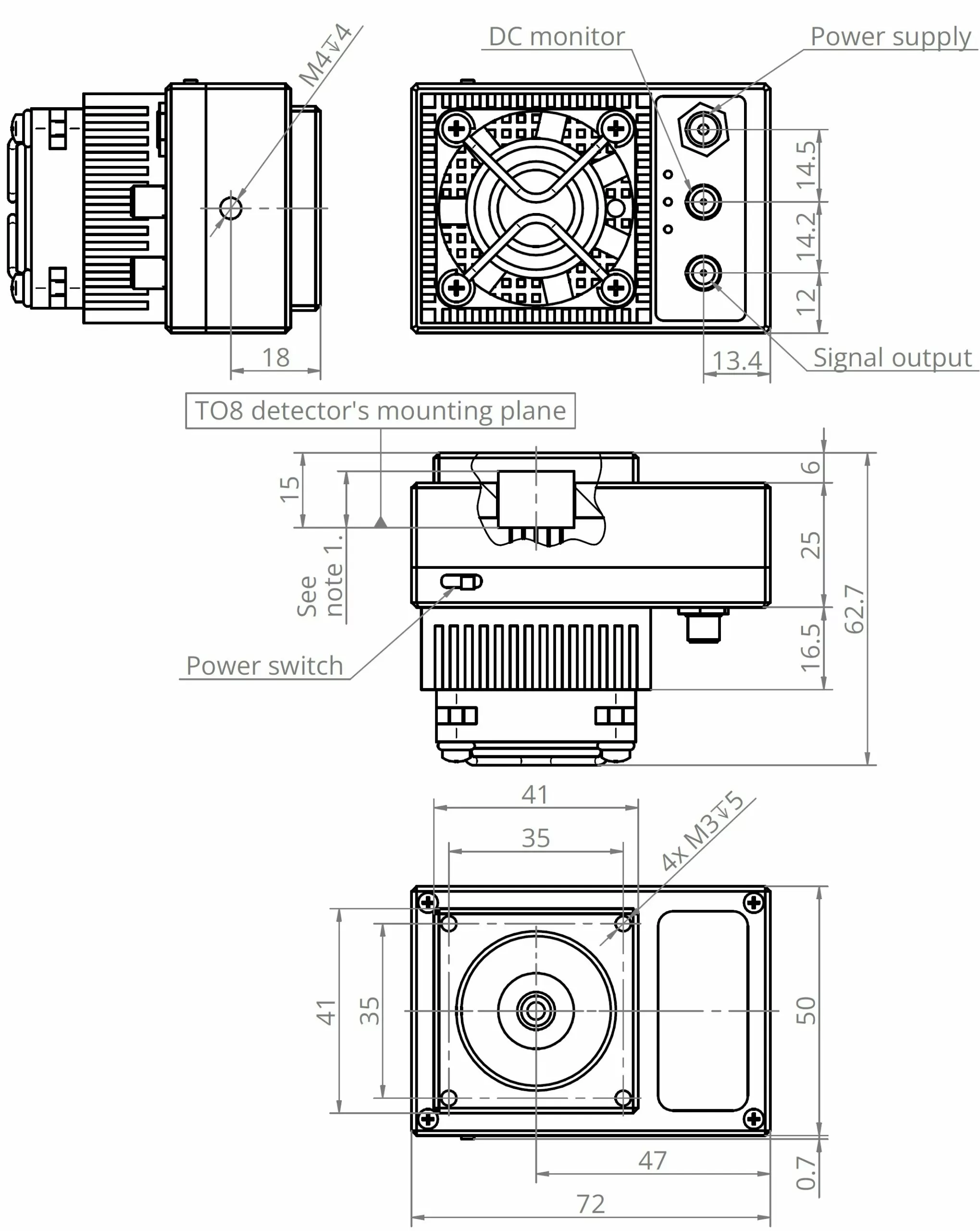

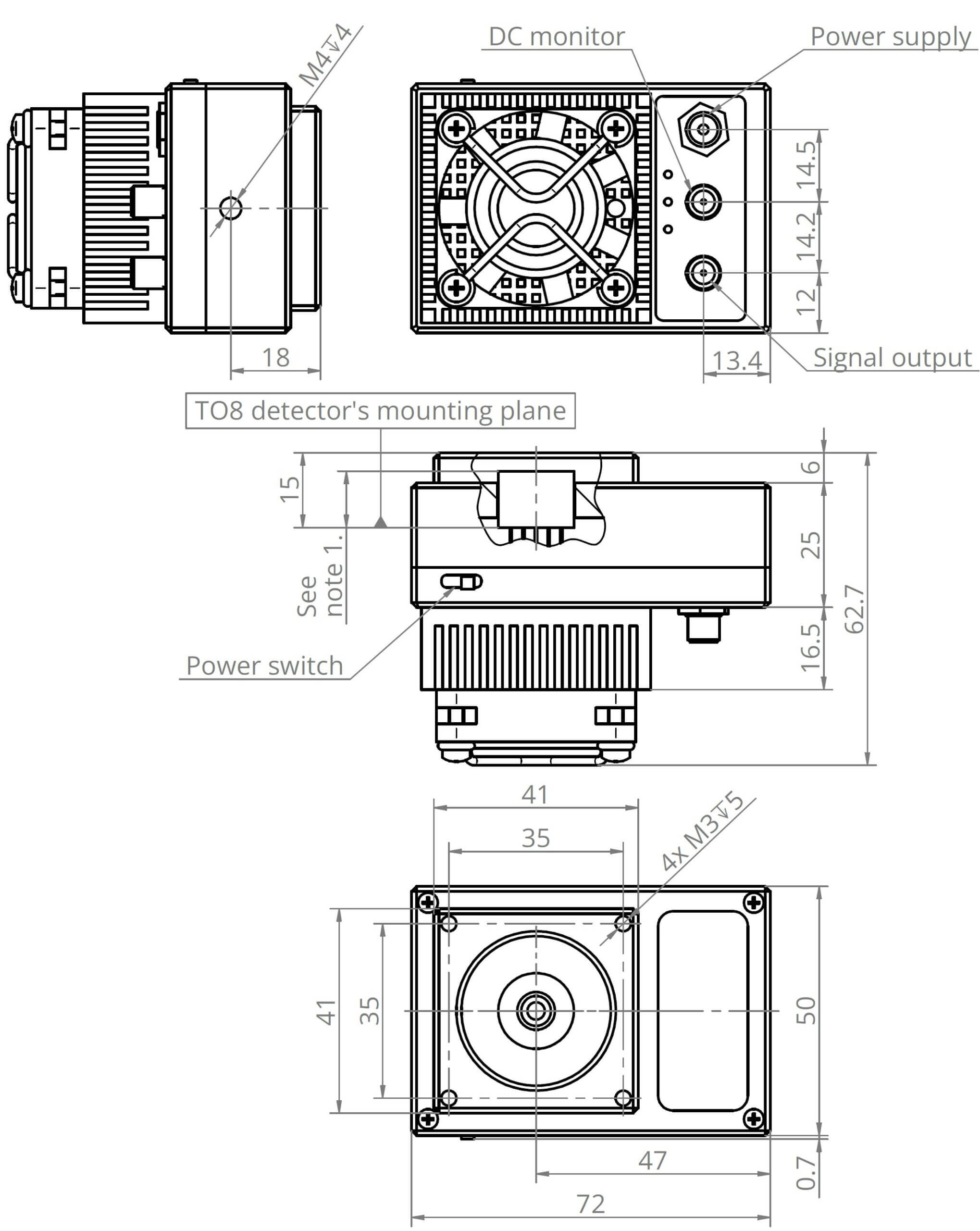

Mechanical layout

(Unit: mm)
