Base mounting systemDRB-2

DRB-2 is a stable base mountig system dedicated for VIGO IR detection modules.

See specification
DRB-2

Download datasheet

download-icon

See related files

arrow-white

Features

Dedicated to VIGO detection modules with M4 mounting hole

Adjustable height

Compatible with M6 optical breadboards

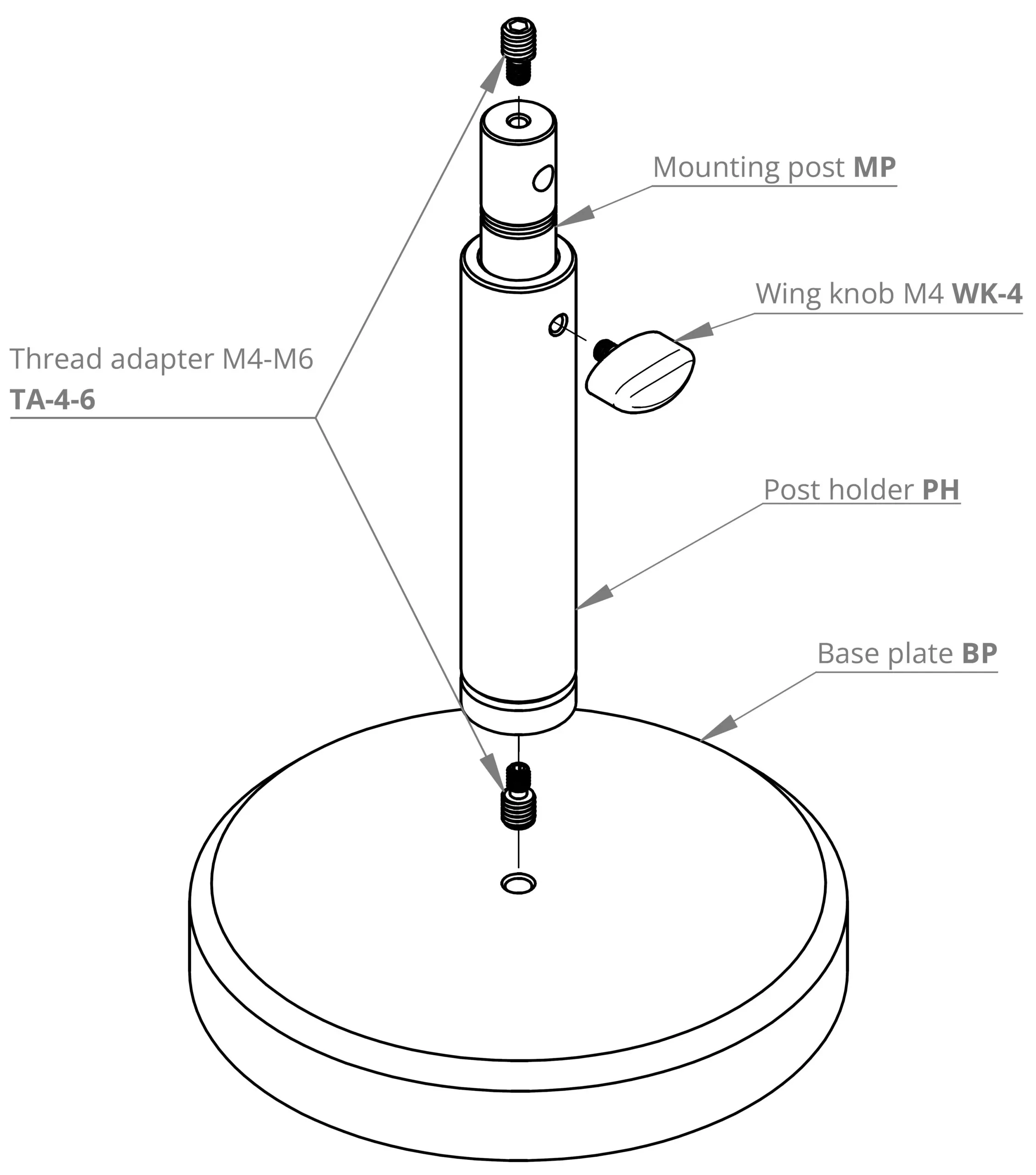

DRB-2 parts

Diagram of a stand assembly featuring a mounting post (MP), wing knob M4 (WK-4), post holder (PH), base plate (BP), and a thread adapter M4-M6 (TA-4-6). Labels indicate each part's position and connection.

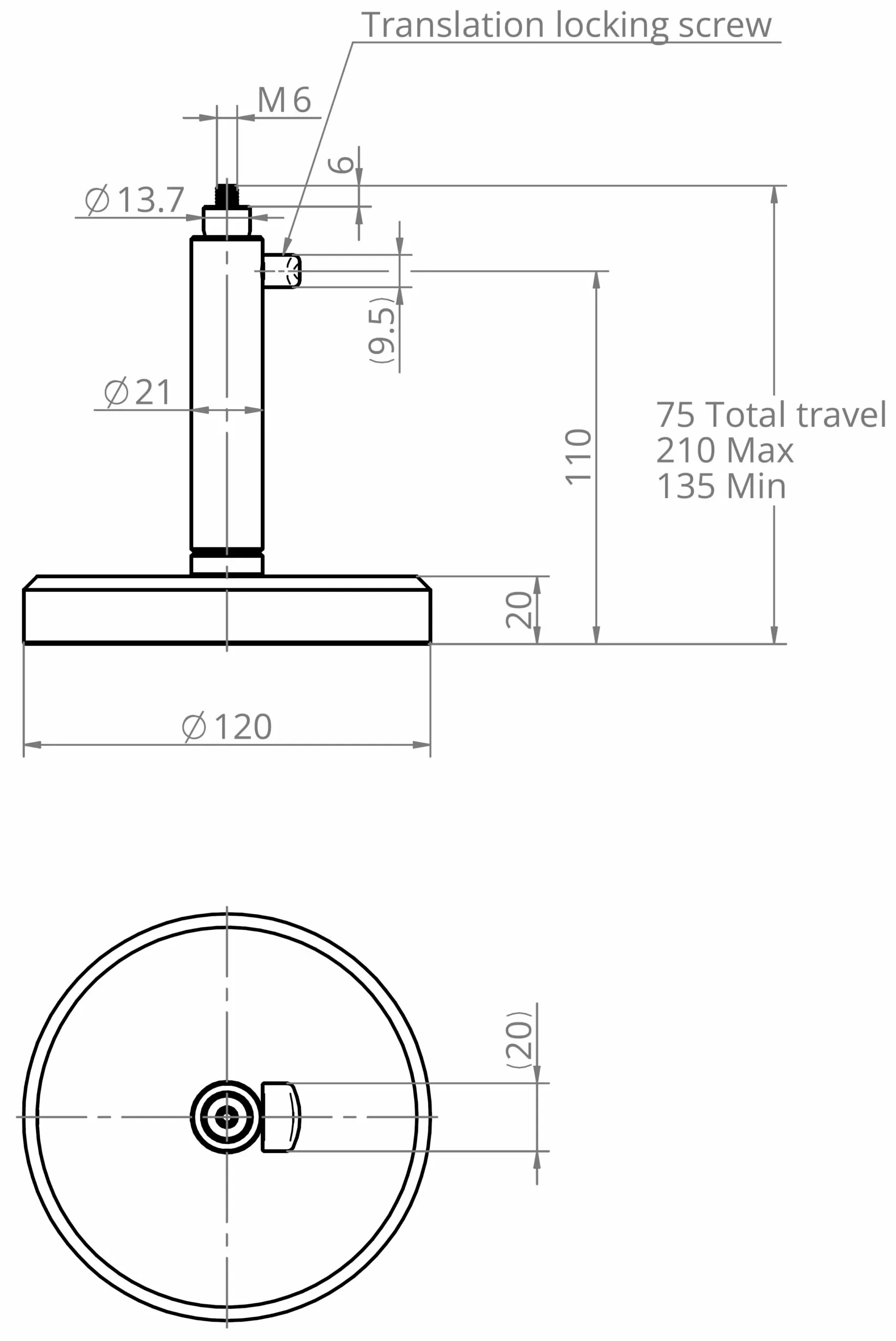

Mechanical layout (unit: mm)

Technical drawing of a cylindrical mechanical component with a circular base, dimensions in millimeters labeled, including a translation locking screw. Side and top views are shown, with annotations for height, diameter, and travel range.
