InAs/InAsSb Detectors
Photovoltaic and photoconductive infrared detectors in which the semiconductor element is made of InAs, InAsSb or InAs/InAsSb T2SL material.
These detectors are cadmium and mercury free. As a result, the detectors comply with the RoHS directive and can be used in the consumer market.

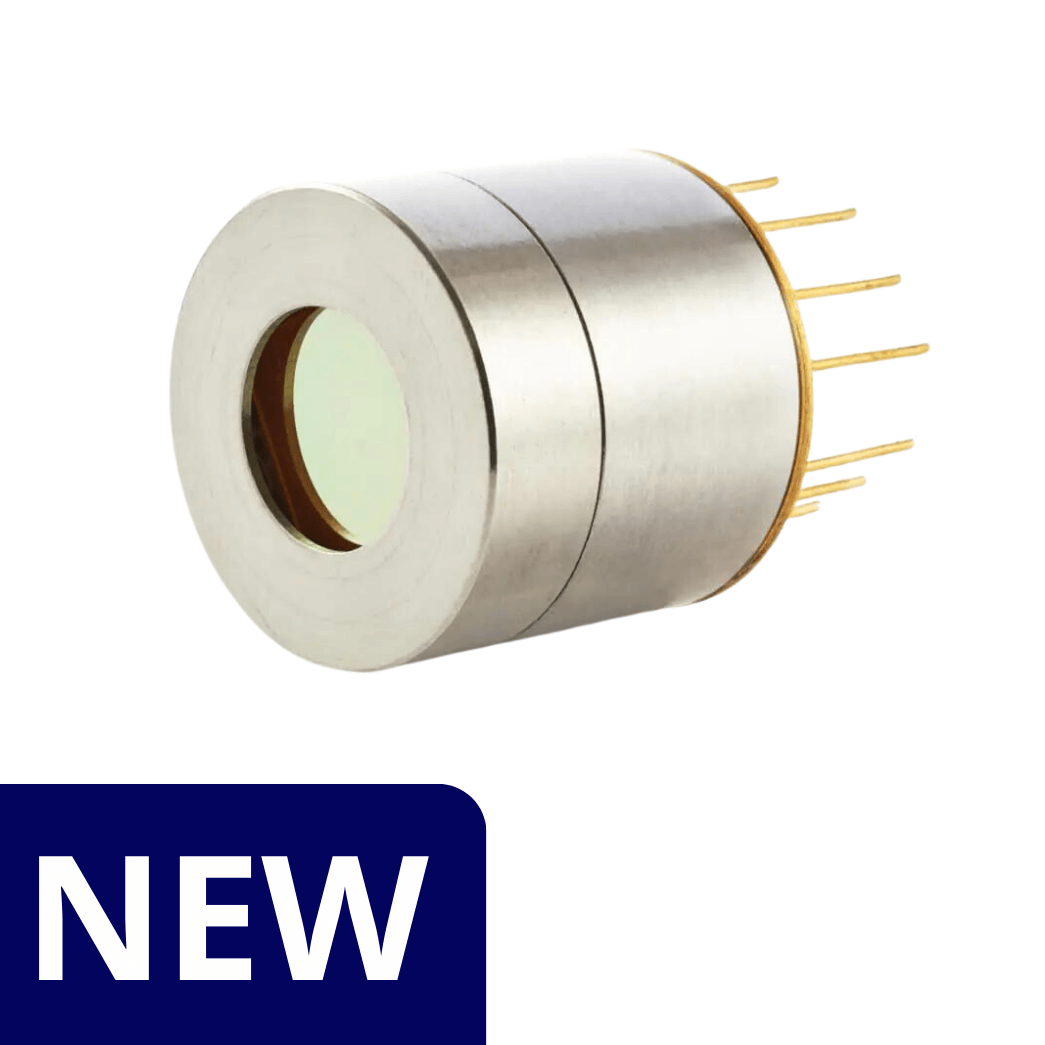

NEW InAs and InAsSb IR detectors
Filter results
Name
Active element material
Cooling
Immersion
Active area
Peak wavelength
λpeak, μm
Cut-off wavelength (10%)
λcut-off, μm
Current responsivity
Ri (λpeak), A/W
Detectivity
D* (λpeak, f = 20 kHz), cm⋅Hz1/2/W
Time constant
τ, ns
Package
Window
Datasheet
Material
InAs
Cooling
no
Immersion
no
Active area
1×1
Peak wavelength
3.1
Cut-off wavelength cut-off
3.5
Responsivity
0.9
Detectivity
7.0×10\(^{9}\)
Time constant
35
Package
TO39
Window
no
Material
InAs
Cooling
no
Immersion
no
Active area
d1.2
Peak wavelength
2.9
Cut-off wavelength cut-off
3.6
Responsivity
0.6
Detectivity
5.0×10\(^{9}\)
Time constant
35
Package
SMD
Window
pAl2O3
Material
InAsSb
Cooling
no
Immersion
yes
Active area
1×1
Peak wavelength
4.5
Cut-off wavelength cut-off
5.3
Responsivity
1.2
Detectivity
5.0×10\(^{9}\)
Time constant
15
Package
TO39
Window
no
Material
InAsSb
Cooling
1TE
Immersion
no
Active area
1×1
Peak wavelength
4.0
Cut-off wavelength cut-off
5.5
Responsivity
0.16
Detectivity
8.6×10\(^{9}\)
Time constant
40
Package
TO39
Window
pSiAR
Material
InAsSb
Cooling
1TE
Immersion
no
Active area
1×1
Peak wavelength
4.3
Cut-off wavelength cut-off
6.6
Responsivity
0.18
Detectivity
4.3×10\(^{9}\)
Time constant
48
Package
TO39
Window
pSiAR
Material
InAsSb
Cooling
no
Immersion
yes
Active area
1×1
Peak wavelength
7.1
Cut-off wavelength cut-off
12.0
Responsivity
0.14
Detectivity
7.7×10\(^{8}\)
Time constant
1.65
Package
TO39
Window
no
Material
InAsSb
Cooling
4TE
Immersion
yes
Active area
1×1
Peak wavelength
6.7
Cut-off wavelength cut-off
11.3
Responsivity
0.55
Detectivity
1.0×10\(^{10}\)
Time constant
3
Package
TO8
Window
Filter results
InAs and InAsSb IR detectors
Filter results
Name
Cooling
Immersion
Peak wavelength
λpeak; µm
Detectivity
D* (λpeak); cm⋅Hz1/2/W
Time constant
τ, ns
Package
Datasheet
Cooling
no
Immersion
no
Wavelength
2.9±0.3
Detectivity
≥ 5.0×10\(^{9}\)
Time constant
≤ 20
Package
TO39
Cooling
no
Immersion
yes
Wavelength
2.9±0.3
Detectivity
≥ 5.0×10\(^{10}\)
Time constant
≤ 20
Package
TO39
Cooling
2TE
Immersion
no
Wavelength
2.9±0.3
Detectivity
≥ 5.0×10\(^{10}\)
Time constant
≤ 15
Package
TO8
Cooling
2TE
Immersion
yes
Wavelength
2.9±0.3
Detectivity
≥ 5.0×10\(^{11}\)
Time constant
≤ 15
Package
TO8
Cooling
2TE
Immersion
no
Wavelength
4.0±0.3
Detectivity
~7.0×10\(^{9}\)
Time constant
~10
Package
TO8
Cooling
no
Immersion
no
Wavelength
4.5±0.6
Detectivity
≥ 5.0×10\(^{8}\)
Time constant
≤ 60
Package
TO39
Cooling
no
Immersion
no
Wavelength
4.2±0.3
Detectivity
~1.2×10\(^{9}\)
Time constant
~11
Package
TO39
Cooling
2TE
Immersion
no
Wavelength
4.5±0.6
Detectivity
≥ 4.0×10\(^{9}\)
Time constant
≤ 15
Package
TO8
Cooling
2TE
Immersion
no
Wavelength
4.0±0.3
Detectivity
~9.0×10\(^{9}\)
Time constant
~4
Package
TO8
Cooling
2TE
Immersion
yes
Wavelength
4.5±0.6
Detectivity
≥ 4.0×10\(^{10}\)
Time constant
≤ 5
Package
TO8
Cooling
2TE
Immersion
no
Wavelength
6.2±0.3
Detectivity
~2.8×10\(^{8}\)
Time constant
~12
Package
TO8
Cooling
2TE
Immersion
no
Wavelength
4.0±0.5
Detectivity
~2.6×10\(^{8}\)
Time constant
~17
Package
TO8
Cooling
3TE
Immersion
no
Wavelength
6.1±0.3
Detectivity
~4.3×10\(^{8}\)
Time constant
~17
Package
TO8
Cooling
2TE
Immersion
no
Wavelength
6.0±0.3
Detectivity
~1.9×10\(^{8}\)
Time constant
~7
Package
TO8
Cooling
3TE
Immersion
no
Wavelength
10.5±0.3
Detectivity
~2.5×10\(^{8}\)
Time constant
~4
Package
TO8
Cooling
3TE
Immersion
yes
Wavelength
8.0±1.0
Detectivity
~2.0×10\(^{9}\)
Time constant
~4
Package
TO8
Cooling
2TE
Immersion
no
Wavelength
10.7±0.3
Detectivity
~1.2×10\(^{8}\)
Time constant
~3
Package
TO8
Filter results
