Small, for TE cooled detectorsSIP-TO8 series

Transimpedance preamplifier

SIP-TO8 is a series of ultra-small transimpedance, AC or DC coupled preamplifiers. It is designed to operate with either biased or non biased detectors. It is compatible with thermoelectrically cooled detectors in TO8 package. SIP-TO8 is dedicated for OEM applications and requires external heatsink (MHS-2). There is a possibility to adjust gain (devices with a frequency bandwidth up to 100 MHz).

Types of VIGO detectors that can be integrated with SIP-TO8 preamplifier

Photoconductive: PC-2TE, PC-3TE, PC-4TE

Photoconductive optically immersed: PCI-2TE, PCI-3TE, PCI-4TE

Photovoltaic: PV-2TE, PVA-2TE, PV-3TE, PV-4TE

Photovoltaic optically immersed: PVI-2TE, PVIA-2TE, PVI-3TE, PVI-4TE

Photovoltaic multiple junction: PVM-2TE

Photovoltaic multiple junction optically immersed: PVMI-2TE, PVMI-3TE, PVMI-4TE

Specification (Ta = 20°C)

Typical value
 Conditions, remarks
Low cut-off frequency flo, Hz DC, 10, 100, 1k, 10k
High cut-off frequency fhi, Hz
100k, 1M, 10M, 100M, 250M
Transimpedance Ki, V/A
up to 100k tunable
Transimpedance range Ki max / Ki min
up to 5
Output impedance Rout, Ω
Output voltage swing Vout, V ±10



fhi ≤ 1 MHz, RL = 1 MΩ*)

1 MHz < fhi ≤ 10 MHz, RL = 1 MΩ*)

10 MHz < fhi ≤ 250 MHz, RL = 50 Ω*)

Output voltage offset Voff, mV
max ±20**)
Power supply voltage Vsup, V


fhi ≤ 1 MHz

fhi >1 MHz

Power supply current Isup, mA max ±50 no detector biasing
Ambient operating temperature Ta, °C
10 to 30
Signal output socket
Power supply and TEC control socket
AMP2×4 (male) AMPMODU 2×4
Mounting hole
no  external heatsink necessary
*)  RL – load resistance
**)  Measured with equivalent resistor at the input instead of the detector, it is to avoid the environmental thermal radiation impact.

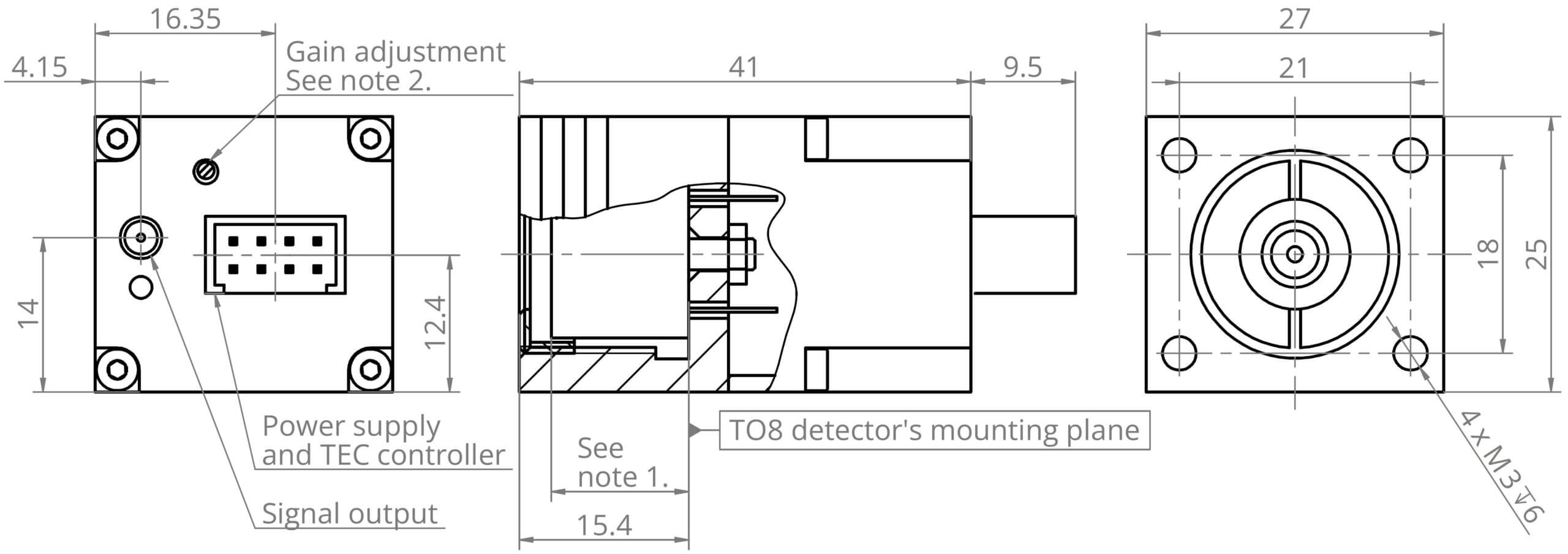

Mechanical layout, mm
