Two-element InAsSb room temperature photovoltaic infrared detector with band-pass filters2E-PVA-5-d1-SMD-BPF1-BPF2-115 - Detector in Development

2E-PVA-5-d1-SMD-BPF1-BPF2-115 is a two-element uncooled photovoltaic IR detector based on InAsSb heterostructure for optimal performance and stability. Each of the two round active elements (1 mm diameter) is paired with an optical filter, allowing for the selective detection of different gases based on their specific absorption spectra. The detector can be provided in the SMD package.

See specification

Download datasheet

See related files

Features

Affordable solution for gas sensing

Low crosstalk

Room temperature operation

Large active area

Possibility of selecting various configurations of bandpass filters (BPF1-BPF2)

Small SMD package

One-element detectors with filters available with a standard lead time

Applications

Gas detection, monitoring and analysis: H2O, C2H2, CH4, C2H6, CO2, N2O, CO

Detector configuration

Detector symbol	2E-PVA-5-d1-SMD-BPF1-BPF2-115
Detector type	photovoltaic
Active element material	epitaxial InAs heterostructure
Cooling	no
Temperature sensor	n/a
Number of elements	2
Active area diameter of single element, d_A	1 mm
Active area pitch	3.4 mm
Optical immersion	no
Package	SMD
Acceptance angle, Φ	≥115 deg.
Window	no

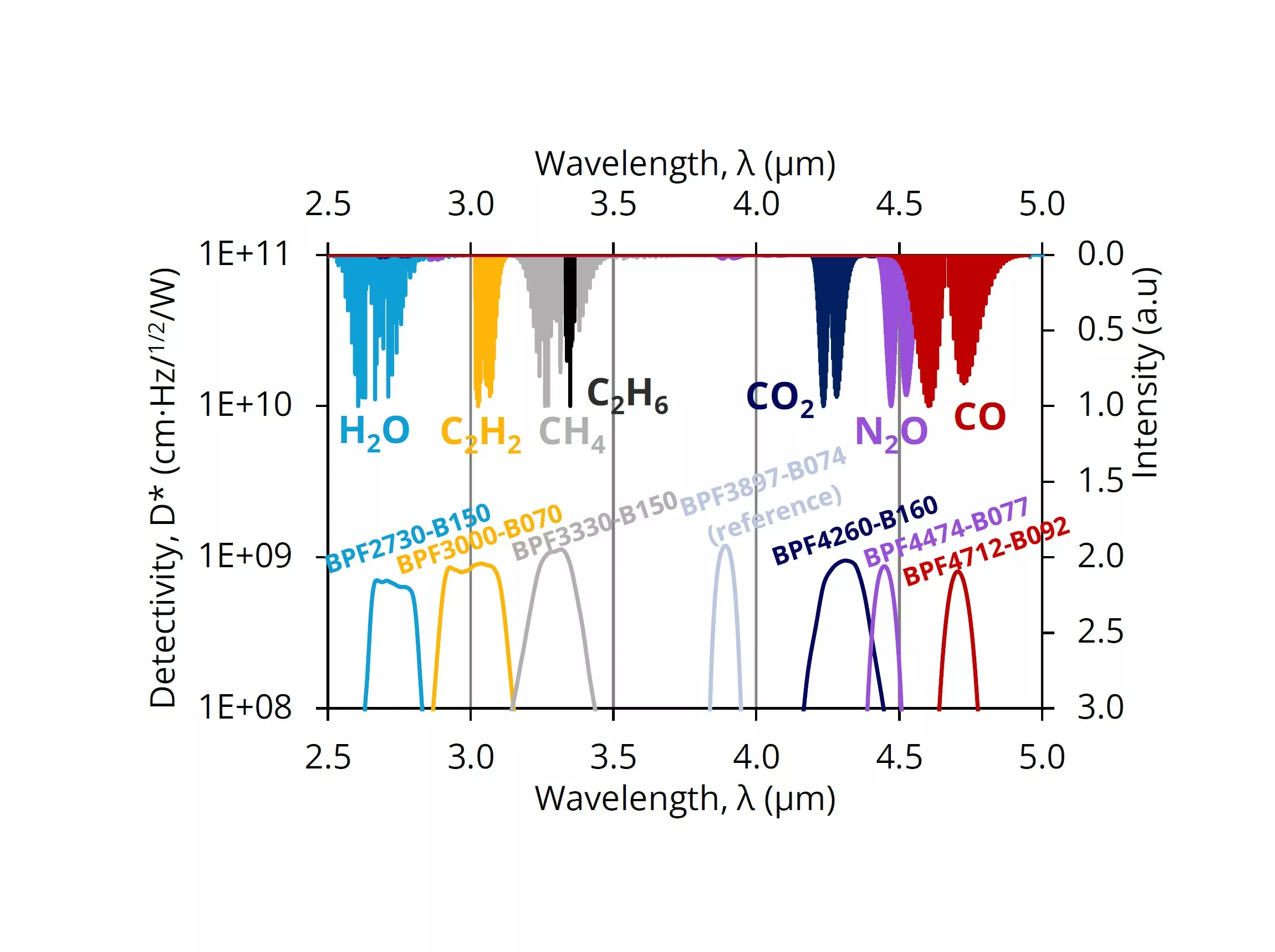

BPF1^*)	BPF2730-B150 (detected gas: H₂O) BPF3000-B200 (detected gas: C₂H₂) BPF3330-B150 (detected gas: C₂H₄, C₂H₆) BPF3897-B074 (reference) BPF4260-B160 (detected gas: CO₂) BPF4474-B077 (detected gas: N₂O) BPF4712-B092 (detected gas: CO)
BPF2^*)	BPF2730-B150 (detected gas: H₂O) BPF3000-B200 (detected gas: C₂H₂) BPF3330-B150 (detected gas: C₂H₄, C₂H₆) BPF3897-B074 (reference) BPF4260-B160 (detected gas: CO₂) BPF4474-B077 (detected gas: N₂O) BPF4712-B092 (detected gas: CO)
^*)Available options of band-pass filters (BPF)

Specification

(Typ.,T_amb = T_chip = 293 K, V_b = 0 V)

Parameter	Value							Unit
Filter centre wavelength, λ_cwl	2730	3000	3330	3897	4260	4474	4712	nm
Filter bandwidth	150	70	150	74	160	77	92	nm
*Detectivity, D (λ_cwl, 20 kHz)**	7.0×10⁸	9.0×10⁸	1.1×10⁹	1.2×10⁹	9.5×10⁸	8.5×10⁸	8.0×10⁸	cm⋅Hz^1/2/W
Current responsivity, R_i (λ_cwl)	0.13	0.17	0.21	0.22	0.18	0.16	0.15	A/W
Dynamic resistance, R_d	65							Ω
