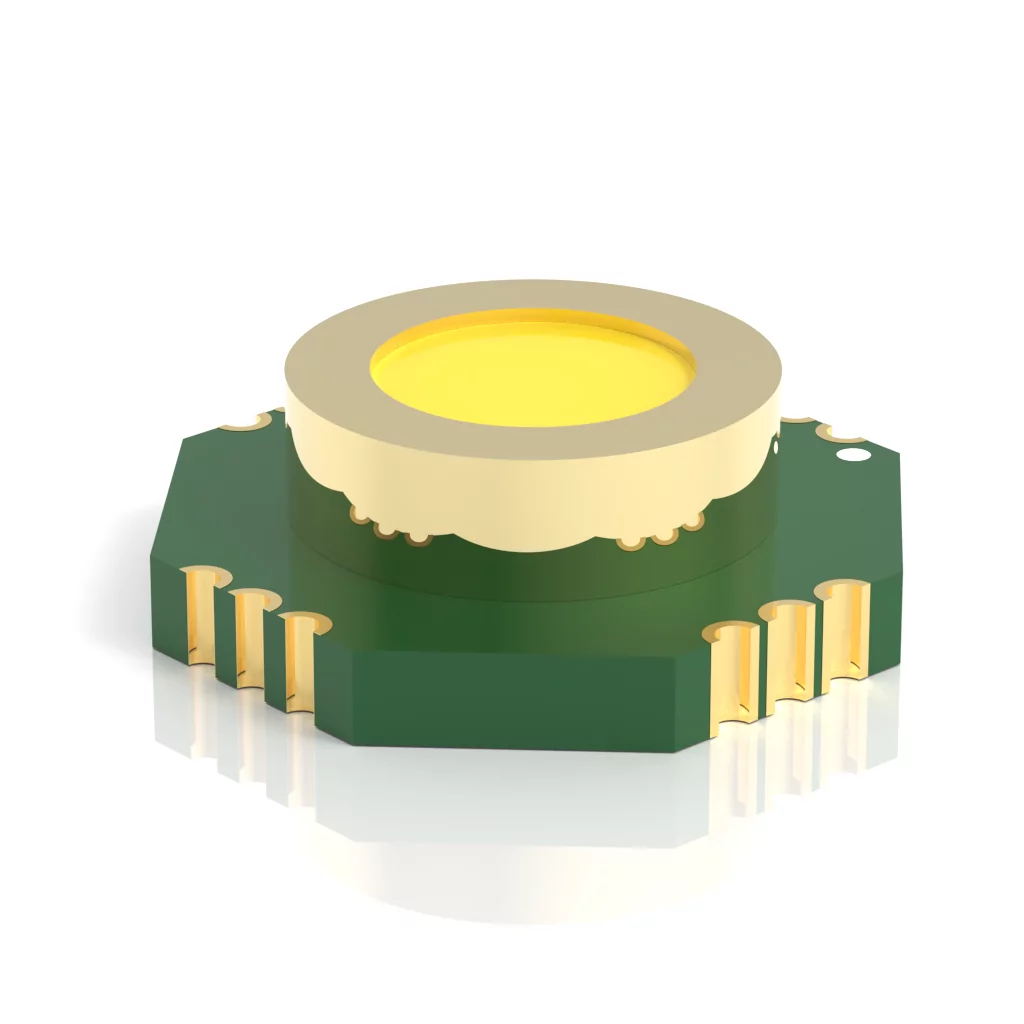

InGaAs, InAs and InAsSb ASIC-type IR Detection Modules
InGaAs, InAs and InAsSb ASIC-type IR Detection Modules
| Image | Name | Active element material | Cooling |
Optical area
?
dA, mm A, mm×mm |
Immersion |
Cut-on wavelength (10%)
?
λcut-on(10%), μm |
Peak wavelength
?
λpeak, μm |
Cut-off wavelength (10%)
?
λcut-off(10%), μm |
Detectivity
?
D*(λpeak, 10kHz), cm·Hz1/2/W |
Voltage responsivity
?
Rv(λpeak), V/W |
Low cut-off frequency
?
flo, Hz |
High cut-off frequency
?
fhi, MHz |
Datasheet | Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IC01410-01 | InGaAs | no | d1 | no | - | 1.62 | 1.71 | 2.5×10\(^{10}\) | 2.5×10\(^{5}\) | 0 | 1.0 |
|
|
 |
IC01420-01 | InGaAs | no | d1 | no | - | 1.62 | 1.71 | 2.5×10\(^{10}\) | 2.5×10\(^{5}\) | 0 | 1.0 |
|
|
|
IC02310-01 | InAs | no | d1 | no | 2.3 | 3.1 | 3.5 | 6.0×10\(^{9}\) | 8.8×10\(^{4}\) | 0 | 5.0 |
|
|
|
IC02320-01 | InAs | no | d1 | no | 2.3 | 3.1 | 3.5 | 6.0×10\(^{9}\) | 8.8×10\(^{4}\) | 0 | 5.0 |
|
|
|
IC03110-01 | InAsSb | no | d1 | no | 2.0 | 4.5 | 3.5 | 1.7×10\(^{9}\) | 2.8×10\(^{4}\) | 0 | 5.0 |
|
|
|
IC03120-01 | InAsSb | no | d1 | no | 2.0 | 4.5 | 3.5 | 1.7×10\(^{9}\) | 2.8×10\(^{4}\) | 0 | 5.0 |
|
|
|
ICI04210-01 | InAsSb | no | 1x1 | yes | 1.8 | 7.1 | 12.0 | 7.0×10\(^{8}\) | 1.1×10\(^{4}\) | 0 | 5.0 |
|
|
|
ICI04220-01 | InAsSb | no | 1x1 | yes | 1.8 | 7.1 | 12.0 | 7.0×10\(^{8}\) | 1.1×10\(^{4}\) | 0 | 5.0 |
|
