HgCdTe room temperature photovoltaic multi-junction infrared detectorPVM-10.6-2x2-TO39-NW-90

PVM-10.6-2x2-TO39-NW-90 is an uncooled photovoltaic multi-junction IR detector based on HgCdTe heterostructure for optimal performance and stability. Its specific wavelength (λspec) is 10.6 µm and its active area (A) is 2 mm × 2 mm. The detector is available in the TO39 package without a window.

Features

Spectral range: 2.0 to 12 µm

Large active area

Back-side illuminated

Fast response

Room temperature operation

No bias required

No 1/f noise

No minimum order quantity required

Applications

Gas detection, monitoring and analysis: SO2, NH3, SF6

CBRN threats detection

CO2 laser measurements: power monitoring and control, beam profiling and positioning, calibration

Free-space optical communication

FTIR spectroscopy

Bacteria identification in medicine

Dentistry

Glucose sensing

Detector configuration

Detector symbol
PVM-10.6-2x2-TO39-NW-90
Detector type
photovoltaic, multi-junction
Active element material epitaxial HgCdTe heterostructure
Cooling no
Temperature sensor n/a
Active area, A 2 mm × 2 mm
Optical immersion no
Package TO39 (3 pin)
Acceptance angle, Φ ~90 deg.
Window no

Specification

(Tamb = Tchip = 293 K, Vb = 0 V)

Parameter Value

Unit
Min. Typ. Max. -
Cut-on wavelength, λcut-on (10%) - 2.0 - μm
Peak wavelength, λpeak - 8.5±1.0 - μm
Specific wavelength, λspec - 10.6 - μm
Cut-off wavelength, λcut-off (10%) - 12.0 - μm
Detectivity, D* (λpeak, 20 kHz) - 2.0×107 - cm⋅Hz1/2/W
Detectivity, D* (λspec, 20 kHz) 1.0×107 - - cm⋅Hz1/2/W
Current responsivity, Ripeak) - 0.002 - A/W
Current responsivity, Rispec) 0.001 0.0015 - A/W
Time constant, τ - 1.5 - ns
Dynamic resistance, Rd 30 50 - Ω

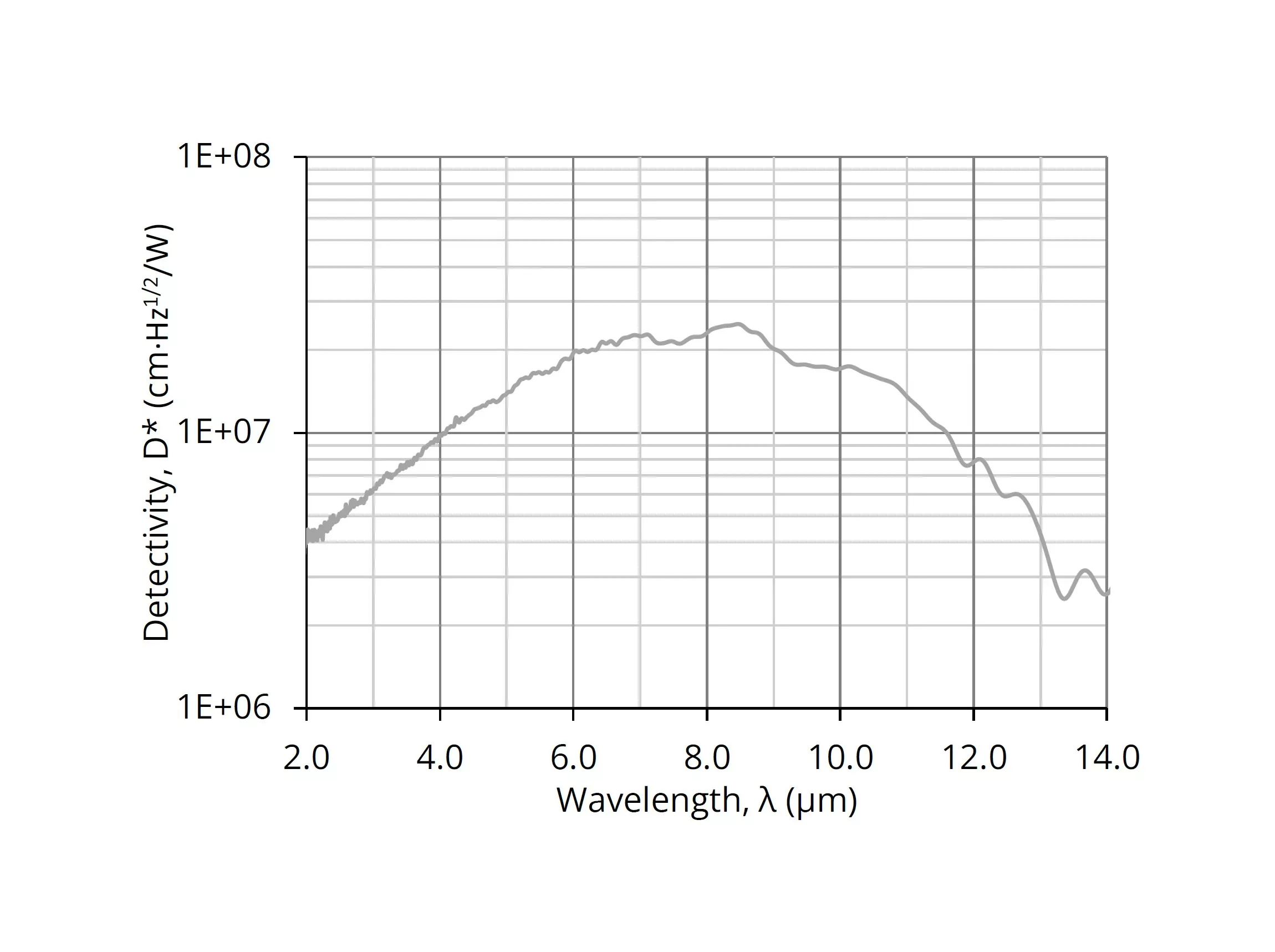

Spectral response

(Typ., Tamb = Tchip = 293 K)
