InAsSb and HgCdTe Multi-Channel IR Detection Modules
InAsSb and HgCdTe Multi-Channel IR Detection Modules
Filtering
| Image | Name | Active element material |
Cut-on wavelength
?
λcut-on (10%), μm |
Peak wavelength
?
λpeak, µm |
Cut-off wavelength
?
λcut-off (10%), μm |
Active area of a single element
?
A, mm×mm |
Number of elements |
Detectivity
?
D* (λpeak, 10kHz), cm⋅Hz1/2/W |
Voltage responsivity
?
Rv (λpeak), V/W |
Low cut-off frequency
?
flo, Hz |
High cut-off frequency
?
fhi, MHz |
Datasheet | Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

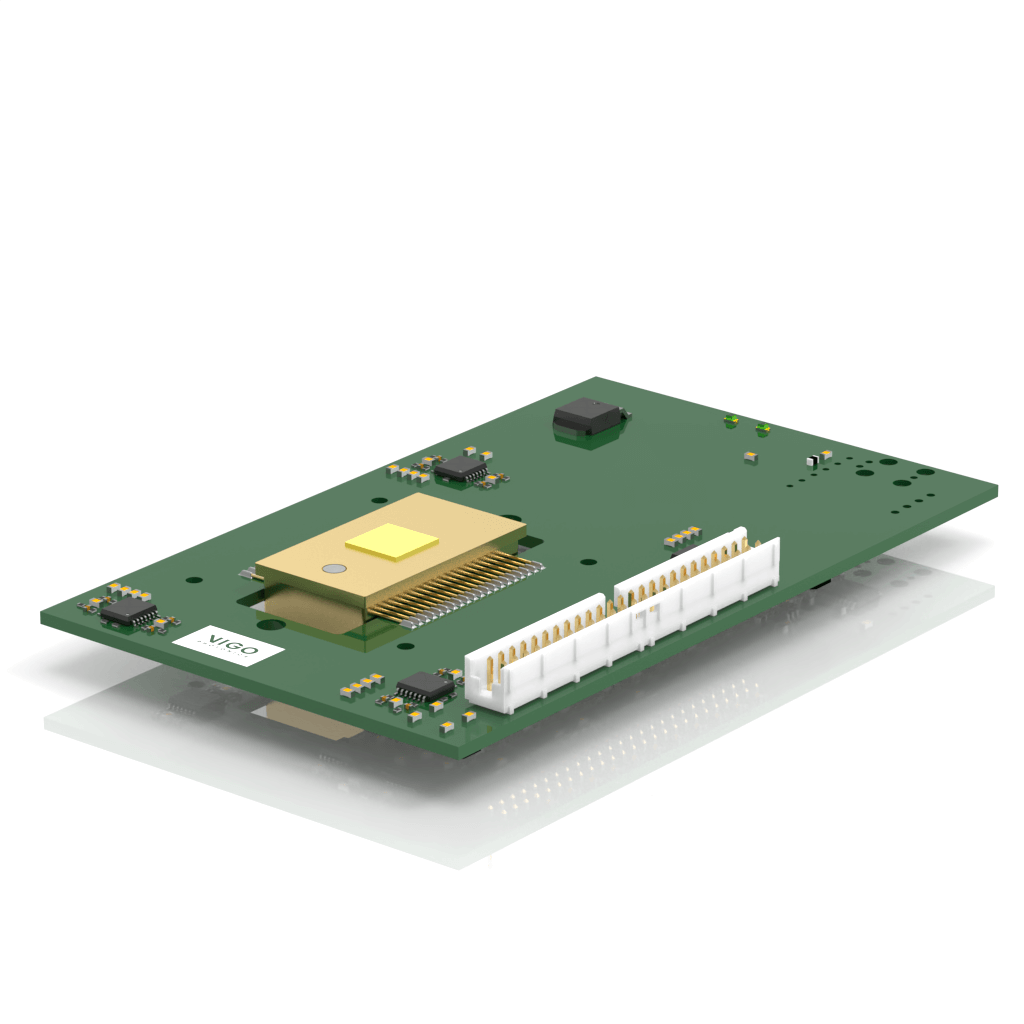

32MM-5 | InAsSb | 1.7 | 3.8 | 5.7 | 0.1×0.1 | 32 (6 rows, 6 columns) | 4.0×10\(^{9}\) | 1.94×10\(^{5}\) | 1.0 | 1.0 |
|
|
 |

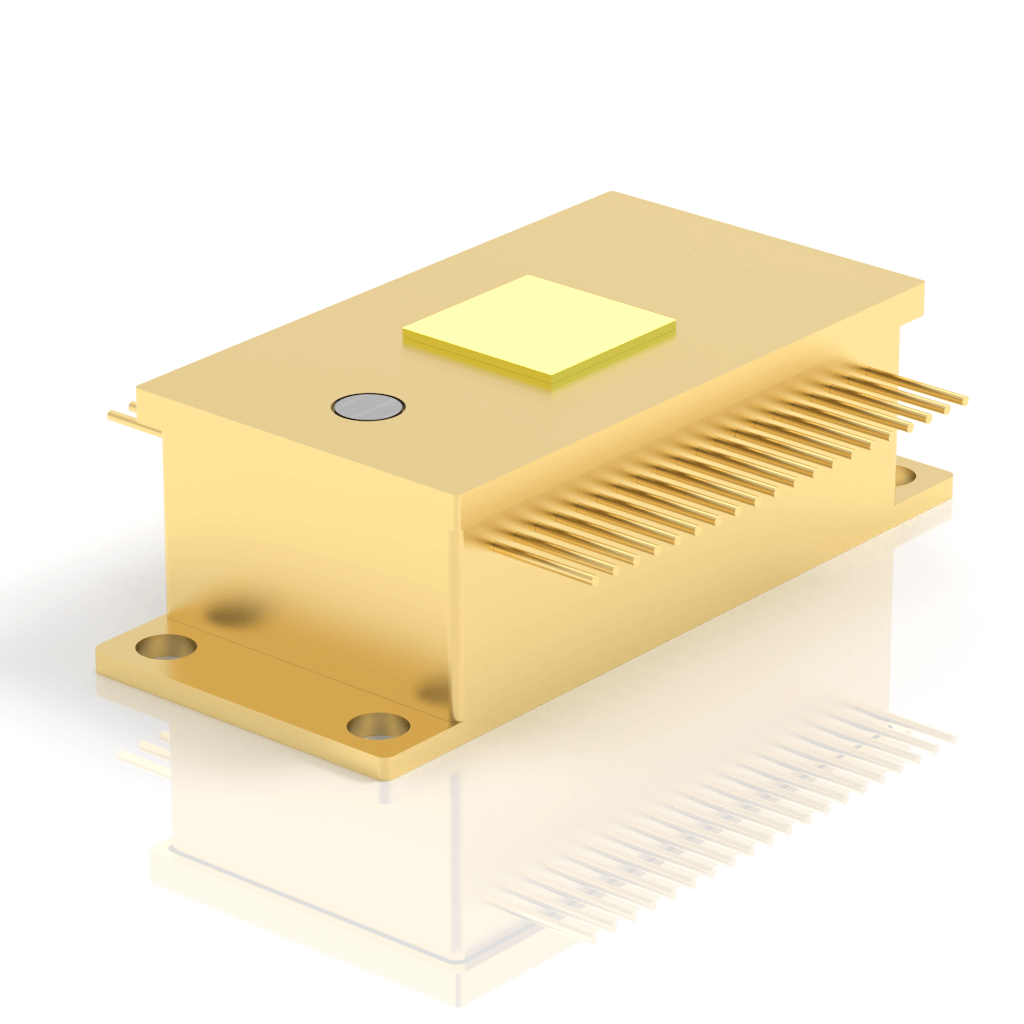

32EM-5-01 | HgCdTe | 2.0 | 4.2 | 5.6 | 0.125×1.000 | 32 (1 row) | 5.0×10\(^{9}\) | 4.0×10\(^{4}\) | 0 | 0.4 |
|
|
 |
32EM-5-02 | HgCdTe | 2.0 | 4.2 | 5.6 | 0.1×0.1 | 32 (1 row) | 5.0×10\(^{9}\) | 4.0×10\(^{4}\) | 0 | 0.4 |
|
|
 |
4EM-5 | HgCdTe | 3.5 | 4.7 | 6.0 | 0.2×0.2 | 4 (1 row) | 9.0×10\(^{9}\) | 1.6×10\(^{5}\) | 0 | 1.0 |
|
|
|

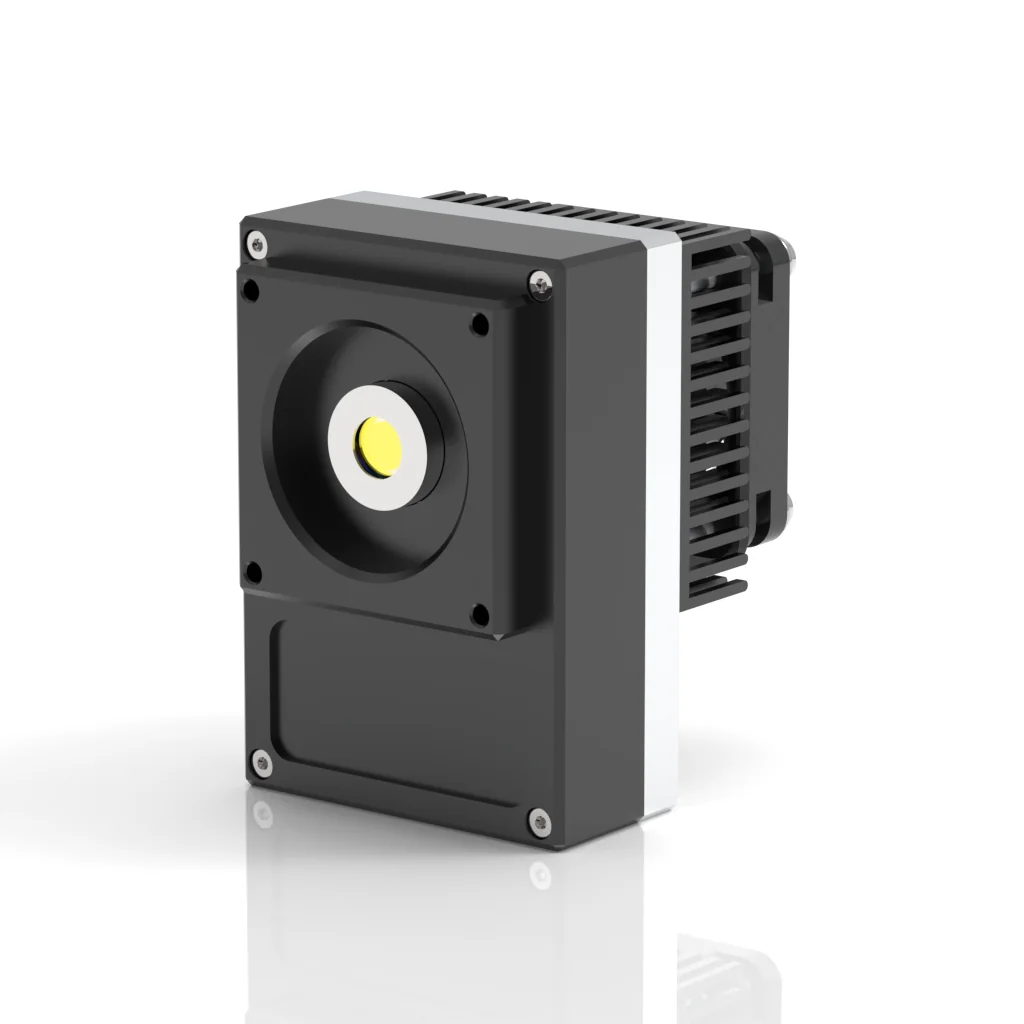

QM-5 | HgCdTe | 3.5 | 4.7 | 6.0 | 0.2×0.2 | 4 (2 rows, 2 columns) | 9.0×10\(^{9}\) | 1.6×10\(^{5}\) | 0 | 1.0 |
|
|
|
QM-10.6 | HgCdTe | 2.0 | 8.5 | 12.0 | 1×1 | 4 (2 rows, 2 columns) | 1.0×10\(^{7}\) | 3.0×10\(^{2}\) | 0 | 1.0 |
|
