HgCdTe (MCT) Photovoltaic DetectorPVM-10.6
2.0 – 13.0 µm, ambient temperature, multiple junction
PVM-10.6 is an uncooled IR photovoltaic multiple junction detector based on sophisticated HgCdTe heterostructure for the best performance and stability. The detector is optimized for the maximum performance at λopt = 13.0 μm. It especially useful as large active area detector operating within 2.0 to 13.0 µm spectral range.

Features
Spectral range from 2.0 to 13.0 µm
Large active area from 1×1 mm^2 to 4×4 mm^2
Ambient temperature operation
No bias required
No 1/f noise
Operation from DC to high frequency
Sensitive to IR radiation polarisation
Specification (Ta = 20°C)
Parameter |
PVM-10.6 |
|
Active element material
|
epitaxial HgCdTe heterostructure |
|
Optimum wavelength λopt, µm
|
10.6 |
|
Detectivity D*(λpeak), cm![]() |
≥2.0×107
|
|
Detectivity D*(λopt), cm
![]() |
≥1.0×107
|
|
Current responsivity-active area product Ri(λopt)·L, A·mm/W |
≥0.002
|
|
Time constant τ, ns
|
≤1.5 |
|
Resistance R, Ω
|
20 to 150 | |
Active area A, mm×mm
|
1×1, 2×2, 3×3, 4×4 |
|
Package
|
TO39 | BNC |
Acceptance angle, Φ
|
~90° | ~102°*)
~124°**) |
Window
|
none |
|
*) Aperture C = Ø4 mm. **) Aperture C = Ø6 mm. |

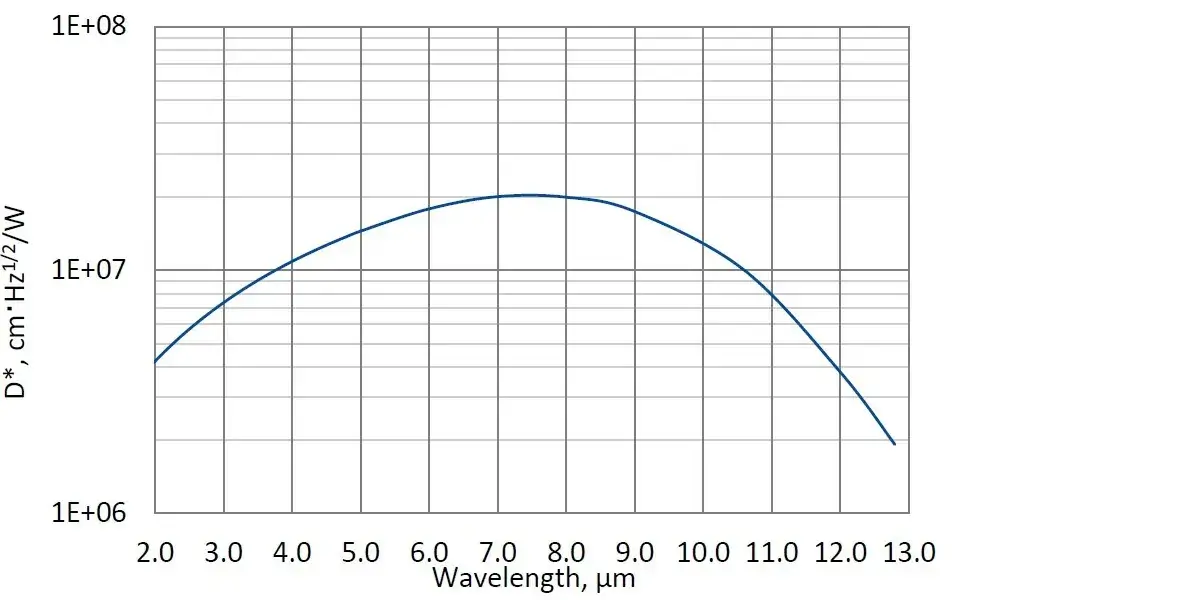

Spectral response (Ta = 20°C)

Mechanical layout, mm

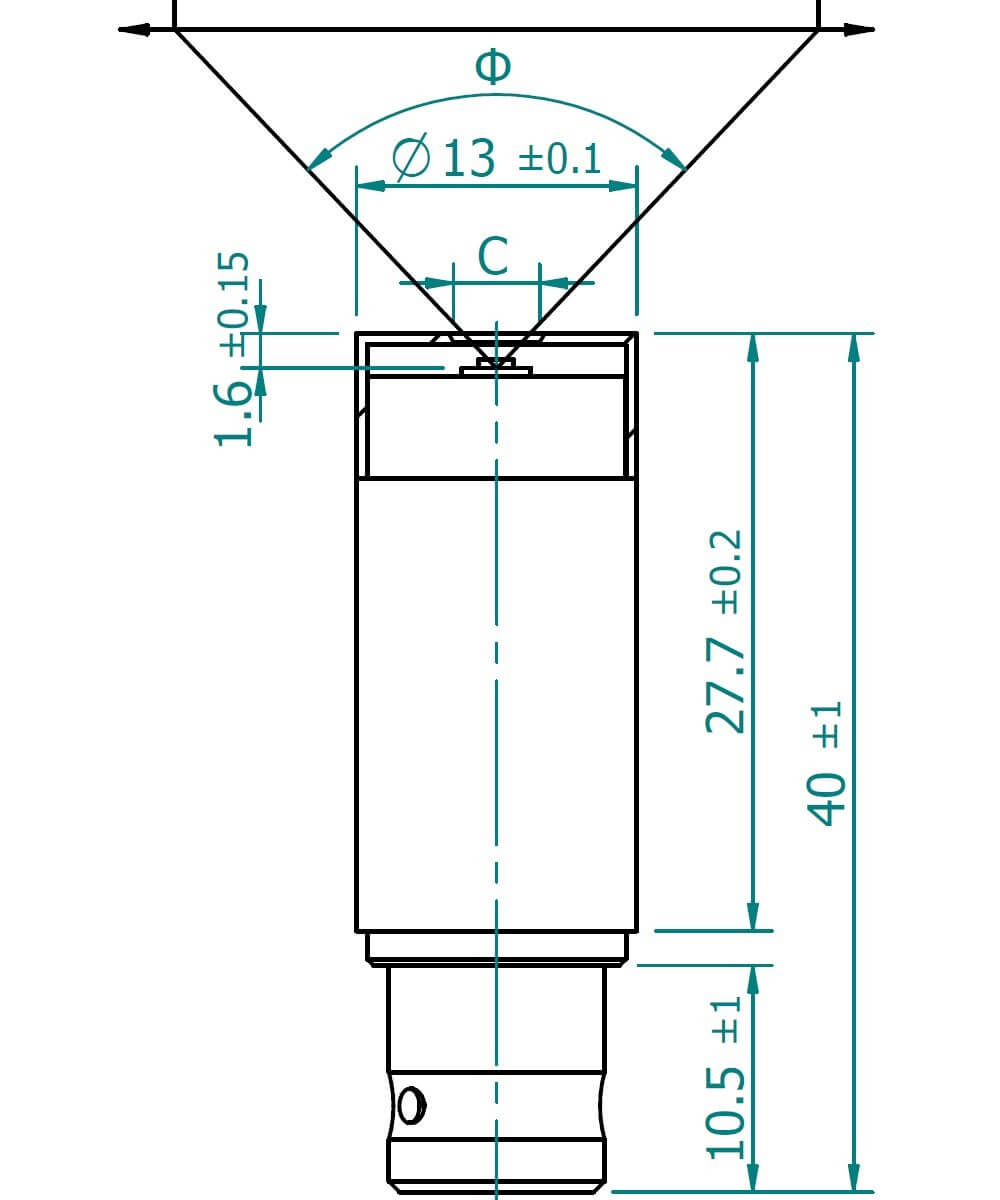

BNC package

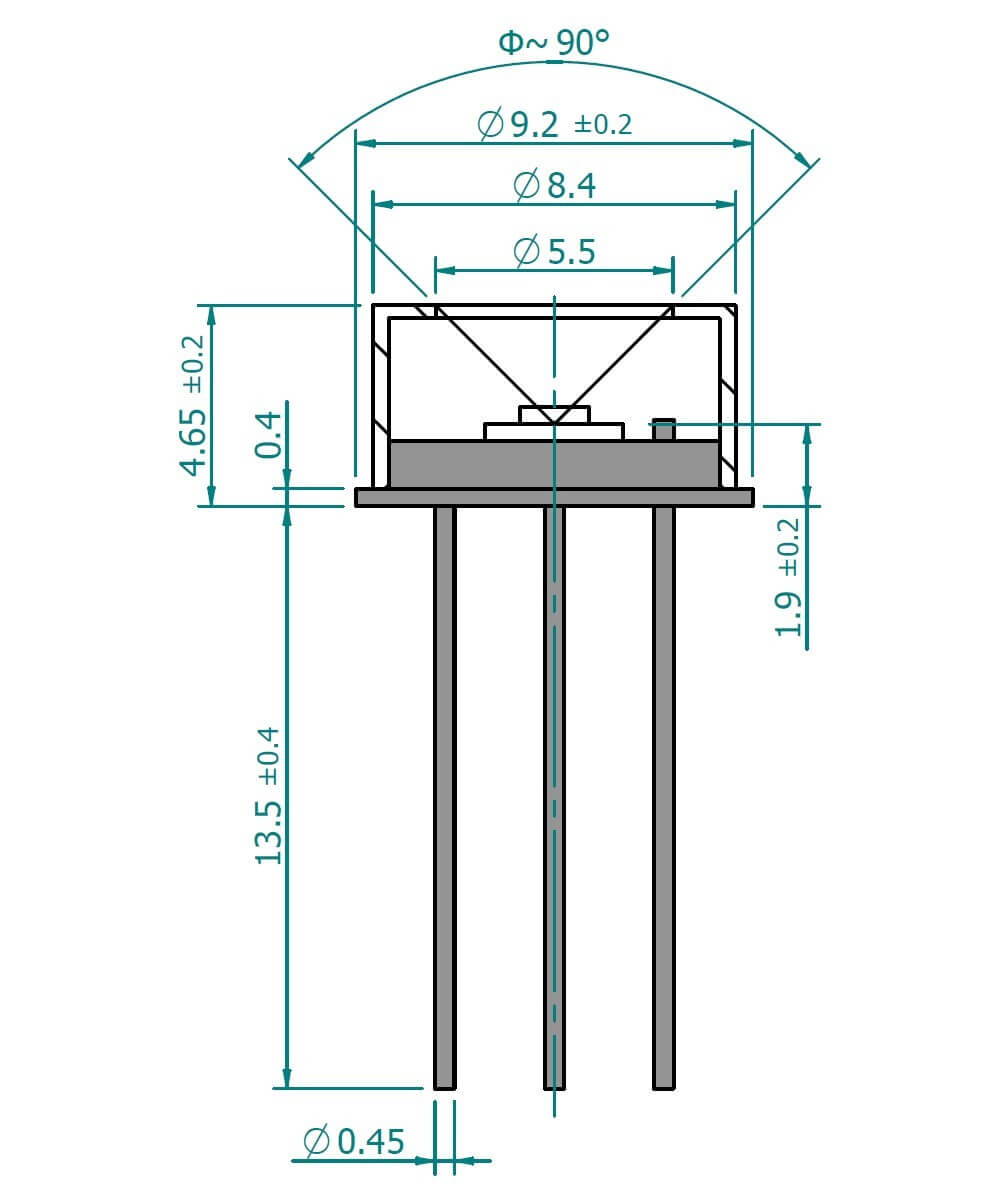

TO39 package
