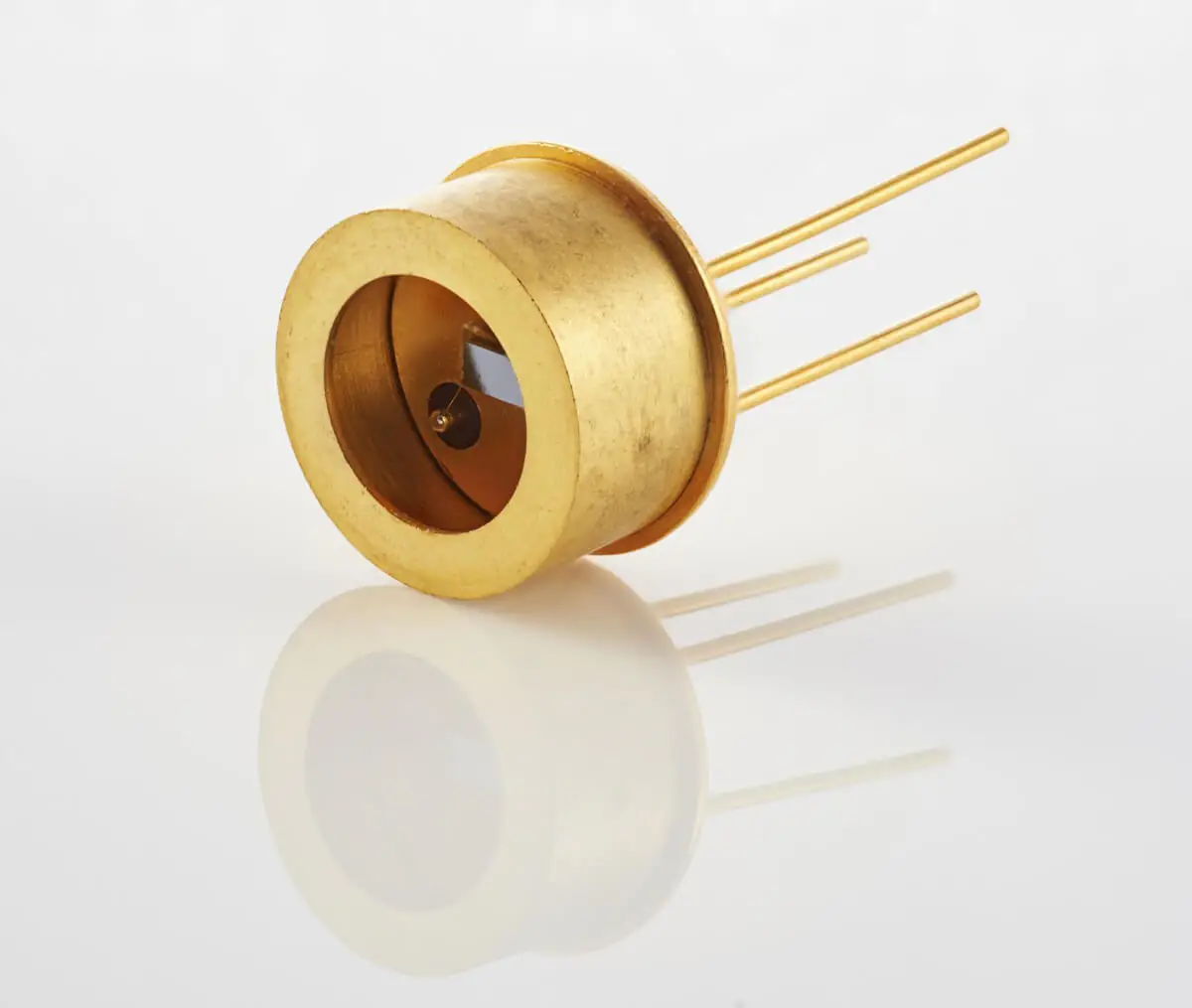

InAs Photovoltaic DetectorPVA-3-0.1×0.1-TO39-NW-90
2.4 – 3.3 µm, ambient temperature
PVA-3-0.1×0.1-TO39-NW-90 is an uncooled IR photovoltaic detector based on InAs alloy. It does not contain mercury or cadmium and is complying with the RoHS Directive.
Features
High performance in the 2.4- 3.3 µm spectral range
Ambient temperature operation
Complying with the RoHS Directive
No bias required
No 1/f noise
Specification (Ta = 20°C, Vb = 0 mV)
Parameter |
PVA-3-0.1×0.1-TO39-NW-90 |
|
|
Active element material
|
epitaxial InAs heterostructure |
|
|
Cut-on wavelength λcut-on (10%), µm
|
≤2.4 |
|
|
Peak wavelength λpeak , µm
|
2.9±0.3 | |
|
Cut-off wavelength λcut-off (10%), µm
|
≥3.3 | |
Detectivity D*(λpeak), cm ⋅Hz1/2/W |
≥5.0×109
|
|
|
Current responsivity Ri(λpeak), A/W
|
≥1.1
|
|
|
Time constant τ, ns
|
≤20 |
|
|
Resistance R, Ω
|
≥2k |
|
|
Active area A, mm×mm
|
0.1×0.1 |
|
|
Package
|
TO39 | |
|
Acceptance angle, Φ
|
~90° | |
|
Window
|
none |
|
Spectral response (Ta = 20°C, Vb = 0 mV)
Mechanical layout, mm
