InAsSb and HgCdTe Balanced/Autobalanced IR Detection Modules
InAsSb and HgCdTe Balanced/Autobalanced IR Detection Modules
| Image | Name | Active element material | Detector type |
Cut-on wavelength (10%)
?
λcut-on, μm |
Specific wavelength
?
λspec, µm |
Cut-off wavelength (10%)
?
λcut-off, μm |
Optical area
?
Ao (REF, SIG), mm×mm |
Detectivity
?
D* (REF, SIG, λspec, f=100kHz), cm⋅Hz1/2/W |
Voltage responsivity
?
Rv(REF, SIG, λspec), V/W |
Low cut-off frequency
?
flo, Hz |
High cut-off frequency
?
fhi, MHz |
Datasheet | Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

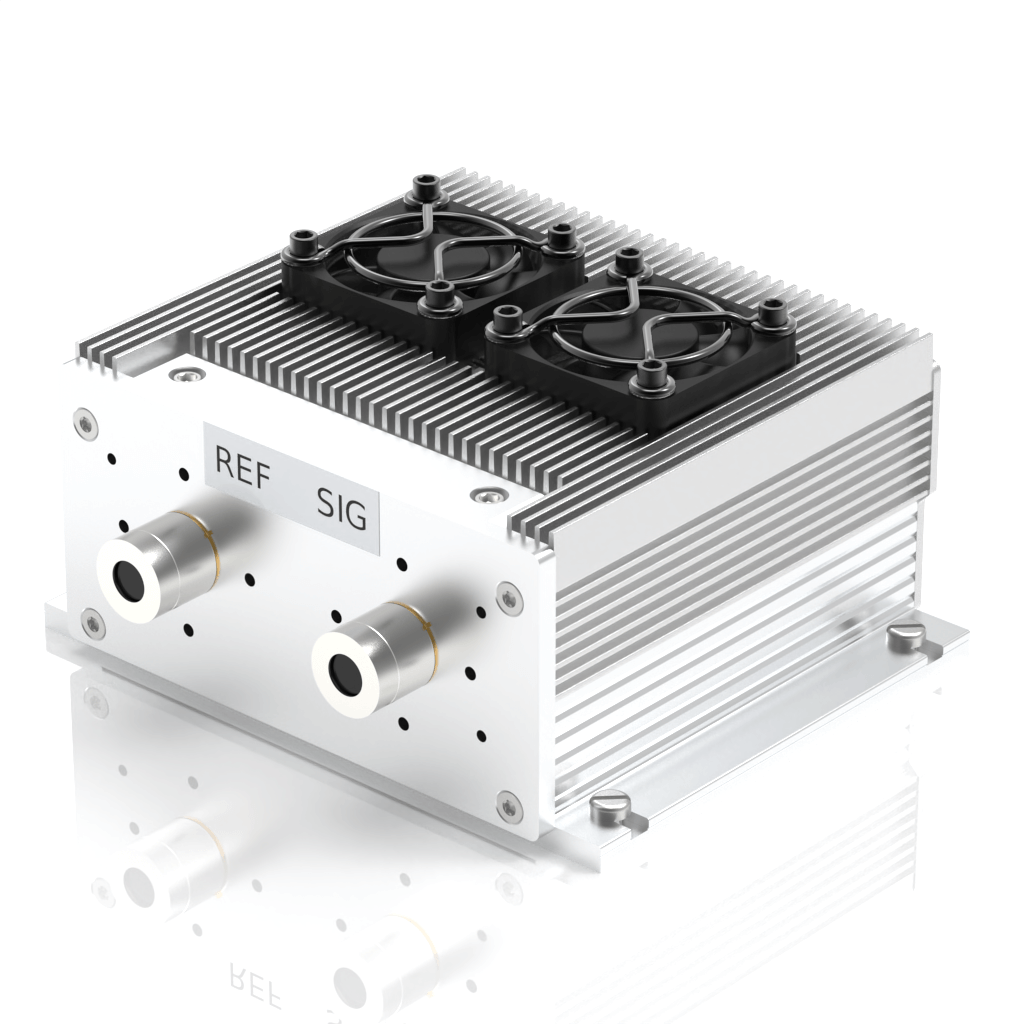

NIPM-I-5 | HgCdTe | PVI-4TE-5-1x1-TO8-wAl2O3-36 | 2.7 | 5.0 | 5.2 | 1×1 | 4.0×10\(^{10}\) | 2.2×10\(^{4}\) | 0 | 2.0 |
|
|
|
NIPM-I-8 | HgCdTe | PVIA-4TE-8-1x1-TO8-wZnSeAR-36 | 3.0 | 8.0 | 10.0 | 1×1 | 1.6×10\(^{10}\) | 2.8×10\(^{4}\) | 0 | 2.0 |
|
|
|
NIPM-I-10 | InAsSb | PVIA-4TE-10-1x1-TO8-wZnSeAR-36 | 1.8 | 10.0 | 11.3 | 1×1 | 8.0×10\(^{8}\) | 1.8×10\(^{3}\) | 0 | 2.0 |
|
