Immersion lens - how to increase the infrared detectors field of view despite a small core?

Two large, glossy blue immersion lenses with reflective metallic surfaces against a blue background.

An immersion lens also commonly referred to as a Solid Immersion Lens (SIL) - is a specialized optical element integrated directly into a detector chip.

Unlike traditional optical setups where a separate lens is mounted in front of a sensor, an immersion lens forms an integral part of the detector itself. It acts as a built-in optical magnifier, collecting infrared light from a relatively large surface area and concentrating it onto a much smaller physical sensor core.

Why use an immersion detector and how does it work?

How do you capture a faint infrared signal without getting drowned out by electrical noise? Traditional infrared detectors face a fundamental physical tradeoff: a larger photosensitive area catches more light, but it also generates significantly higher intrinsic electrical noise. In fact, noise scales directly with the physical surface area of the sensor - the larger the detector, the noisier it gets.

An immersion lens solves this challenge. By optically focusing incoming light onto a tiny photosensitive element, it gives you the light-gathering power of a large detector while preserving the low-noise performance of a small one.

What are the monolithic advantages?

It is fabricated directly from the detector’s own substrate material - specifically gallium arsenide (GaAs). This monolithic design turns the substrate into an optical magnifier that offers several critical advantages:

  • Perfect Alignment: Because the lens and the detector are formed from the exact same piece of material, it guarantees flawless positioning and centering of the lens relative to the active sensing element.
  • Elimination of Reflections: Integrating the lens directly into the semiconductor structure means there is no separate lens object and no air gap. This eliminates the material interfaces that usually cause optical losses, drastically reducing unwanted reflections and maximizing signal transmission.
  • Optical Area Expansion: It collects infrared radiation from a large optical surface and precisely focuses it onto a much smaller physical sensing element.
  • Drastic Noise Reduction: By keeping the physical detector size tiny, it minimizes thermal noise while maintaining exceptionally high sensitivity to weak signals.

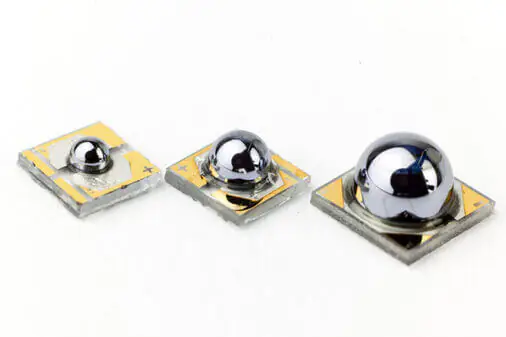

Immersion lens portfolio

To meet diverse optical and mechanical requirements, we offer immersion detectors equipped with three distinct lens geometries, all monolithically integrated directly onto the GaAs substrate:

  • Hyperhemispherical Lens: Offers the maximum optical concentration and highest detectivity boost. It shrinks the required physical area the most, making it the top choice for directional, ultra-weak signals. (Explore our full range of InAsSb and HgCdTe / MCT immersion detectors)
  • Hemispherical Lens: Delivers a balanced optical gain while maintaining a wide acceptance angle, making it easy to integrate into wide-angle optical setups.
  • Hemispherical / Quasi Flat-Top Lens: Combines optical immersion with a quasi-flat front surface. This enables direct optical fiber coupling and compact, flush mounting in space-constrained assemblies. (Explore our InAsSb room-temperature optically immersed photovoltaic infrared detector)

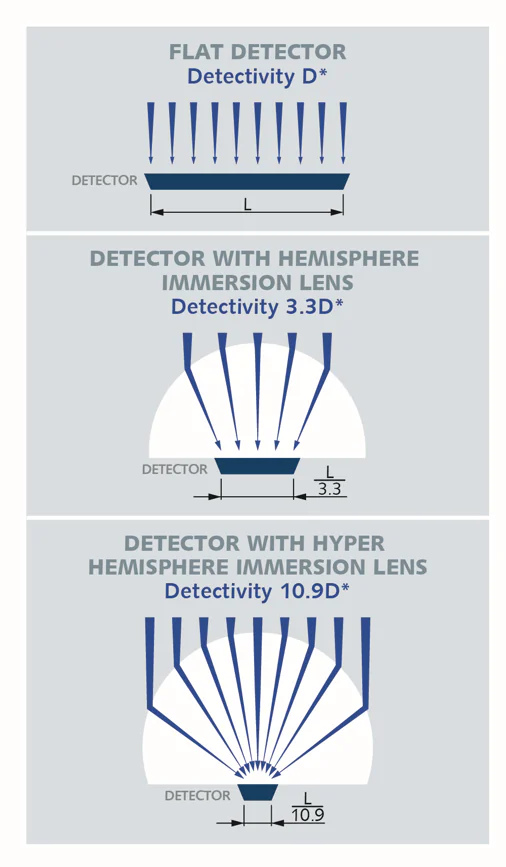

Technical Comparison

Lens geometry Optical size (d) Acceptance angle Detectivity Gain
Detector type
Hyper hemispherical 0.5 mm

1 mm
Narrow (≈36°) Highest (≈10.9) HgCdTe, InAs/InAsSb Photovoltaic,

HgCdTe, InAs/InAsSb Photoconductive
Hemispherical 0.5 mm

1 mm

Wide (≈90°-180°, depends on the housing geometry) High (≈3.3) HgCdTe, InAs/InAsSb Photovoltaic,

HgCdTe, InAs/InAsSb Photoconductive
Hemispherical/ Quasi-Flat-Top Lens* 0.3 mm Moderate (≈40°) High (≈3) InAs/InAsSb Photovoltaic

* Hemispherical/quasi-Flat-Top Lens process allows mass production. You can read more in Ref. [3]

Diagram titled Hyperhemispherical showing the optical path through an immersion lens, with labels for the acceptance angle, field of view, active element, objective focal plane, and various geometric dimensions.
R – microlens radius L – lens face to the objective focal plane distance d – optical (apparent) detector size d’ – physical detector size h = R + R/n, microlens thickness

What are key applications of immersion lens technology?

Infrared detectors with integral immersion lenses are engineered specifically for operations involving ultra-low optical signal power-scenarios where peak detectivity (D*) and maximum sensitivity are absolute requirements.

They are essential wherever rapid response to subtle thermal changes is critical:

  • Gas, Smoke, and Fire Detection: Pinpointing trace gas concentrations or early-stage flame hazards.
  • Defense & Military Tracking: Long-range optical tracking and target acquisition in the infrared spectrum.
  • Industrial Sensing & Analytics: Precision temperature measurement (pyrometry), smart HVAC controls, and automated people counting.



Do you always need an immersion lens?

While optical immersion delivers extraordinary results for weak signal levels, it is not always necessary if your system operates with strong sources of radiation.

If your optical signal is already strong, the high radiation power naturally boosts the Signal-to-Noise Ratio (SNR) of a standard flat detector to levels comparable to an immersion detector. Furthermore, exposing an immersion lens to high optical power can cause the detector's output to lose linearity - meaning the signal growth levels off as optical power increases.

For high-power applications, a traditional flat detector without a lens is often the simpler, more cost-effective choice.



Author: Justyna Chrzanowska-Giżyńska PhD
Senior Optical & Process Engineer, VIGO Photonics



Q&A Section

Question 1: What is the main advantage of using an immersion lens over a standard flat infrared detector?

Answer: The primary advantage is overcoming the physical trade-off between signal capture and electrical noise. A standard flat detector needs a large area to catch more light, which inevitably generates more noise. An immersion lens acts as a built-in optical magnifier, gathering light from a large area and focusing it onto a tiny physical sensor core. This gives you the high signal of a large detector with the exceptionally low noise of a small one.

Question 2: What does it mean that the immersion lens is "monolithically integrated," and why is it important?

Answer: Monolithic integration means that the lens and the detector are fabricated from the exact same piece of semiconductor material (e.g., GaAs). Unlike traditional setups with a separate lens mounted in front of the sensor, this design eliminates air gaps and material interfaces. As a result, it prevents unwanted optical reflections, ensures flawless alignment, and maximizes signal transmission.

Question 3: How do I choose between a hyperhemispherical and a hemispherical lens?

Answer: Your choice depends on the required acceptance angle and the strength of the signal. If you are tracking highly directional, ultra-weak signals and need the absolute highest detectivity boost, the hyperhemispherical lens (narrow acceptance angle) is the top choice. If you need a wider angle of detection while still benefiting from a balanced optical gain, the hemispherical lens (wide acceptance angle) is the better option.

Question 4: Are there situations where an immersion lens is not recommended?

Answer: Yes. While immersion lenses are unmatched for ultra-low optical signals, they are not necessary if your system involves strong sources of radiation. High radiation power naturally provides a good Signal-to-Noise Ratio (SNR) for standard flat detectors. Furthermore, exposing an immersion lens to high optical power can cause the detector to lose signal linearity. For high-power applications, a standard flat detector is usually a simpler and more cost-effective choice.



References:

  1. H.R. Hardaway, C.T. Elliott, N.T. Gordon, J. Crowder, Optical immersion of mid-infrared LEDs and photodiodes for gas sensing applications, Proc. SPIE 4947 (2003)
  2. J. Piotrowski, Optical immersion of IR photodetectors as an effective way to reduce cooling requirements, Opt. Appl. XXIII (1) (1993)
  3. J. Chrzanowska-Giżyńska, O. Ślęzak, P. Nyga, M. Wankiewicz, Fabrication of infrared detector with monolithic microlens produced in thermal reflow process, Infrared Phys. Technol. 133 (2023) 104801
