HgCdTe (MCT) Photovoltaic Detector

PV-2TE-8

3.3 – 8.6 µm, two-stage thermoelectrically cooled

PV-2TE-8 is two-stage thermoelectrically cooled IR photovoltaic detector based on sophisticated HgCdTe heterostructure for the best performance and stability. The device is optimized for the maximum performance at λopt = 8.0 μm. Cut‑on wavelength can be optimized upon request. Reverse bias  Vb may significantly increase response speed and dynamic range. It also results in improved performance at high frequencies, but 1/f noise that appears in biased devices may reduce performance at low frequencies. 3° wedged zinc selenide anti-reflection coated (wZnSeAR) window prevents unwanted interference effects.

See specification

Features

High performance in the 3.3 – 8.6 µm spectral range

Two-stage thermoelectrically cooled

No bias required

No 1/f noise

Specification (Ta = 20°C, Vb = 0 mV)

Parameter
PV-2TE-8.0
Active element material
epitaxial HgCdTe heterostructure
Optimum wavelength λopt, µm
8.0
Detectivity D*(λpeak), cm⋅Hz1/2/W
≥4.0×108
Detectivity D*(λopt), cm⋅Hz1/2/W
≥2.0×108
Current responsivity Riopt), A/W
≥0.8
Time constant τ, ns
≤45
Resistance-active area product R⋅A, Ω⋅cm2
≥0.0002
Active element temperature Tdet, K
~230
Active area A, mm×mm
0.05×0.05, 0.1×0.1
Package
TO8, TO66
Acceptance angle, Φ
~70°
Window
wZnSeAR

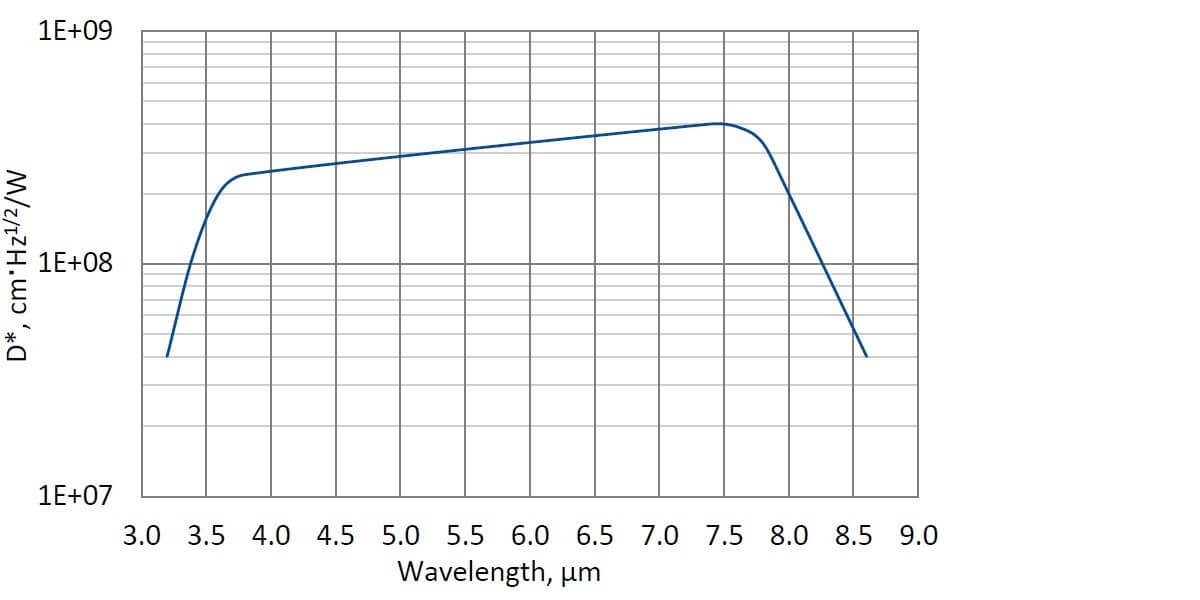

Spectral response (Ta = 20°C, Vb = 0 mV)

PV-2TE-8-1

Mechanical layout, mm

2TE-TO8-non-imm-7

2TE-TO8 package

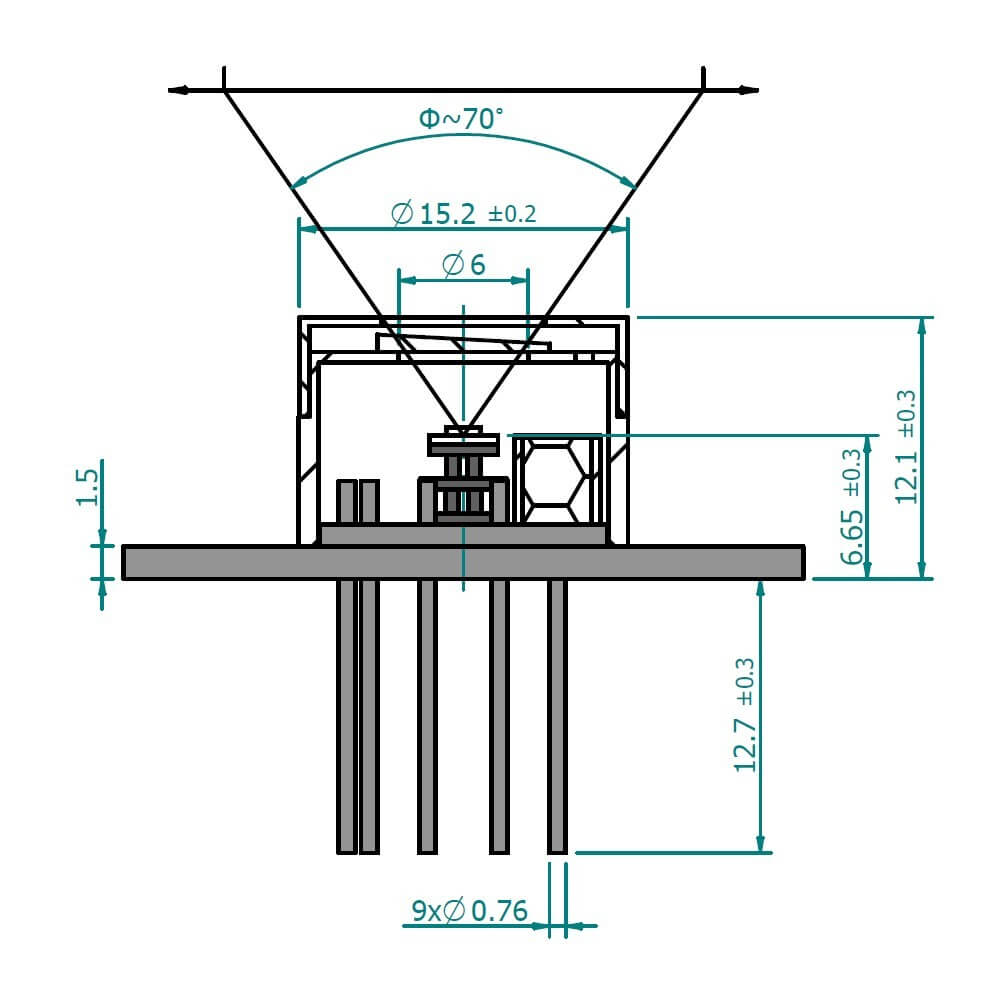

2TE-TO66-non-imm-5

2TE-TO66 package
