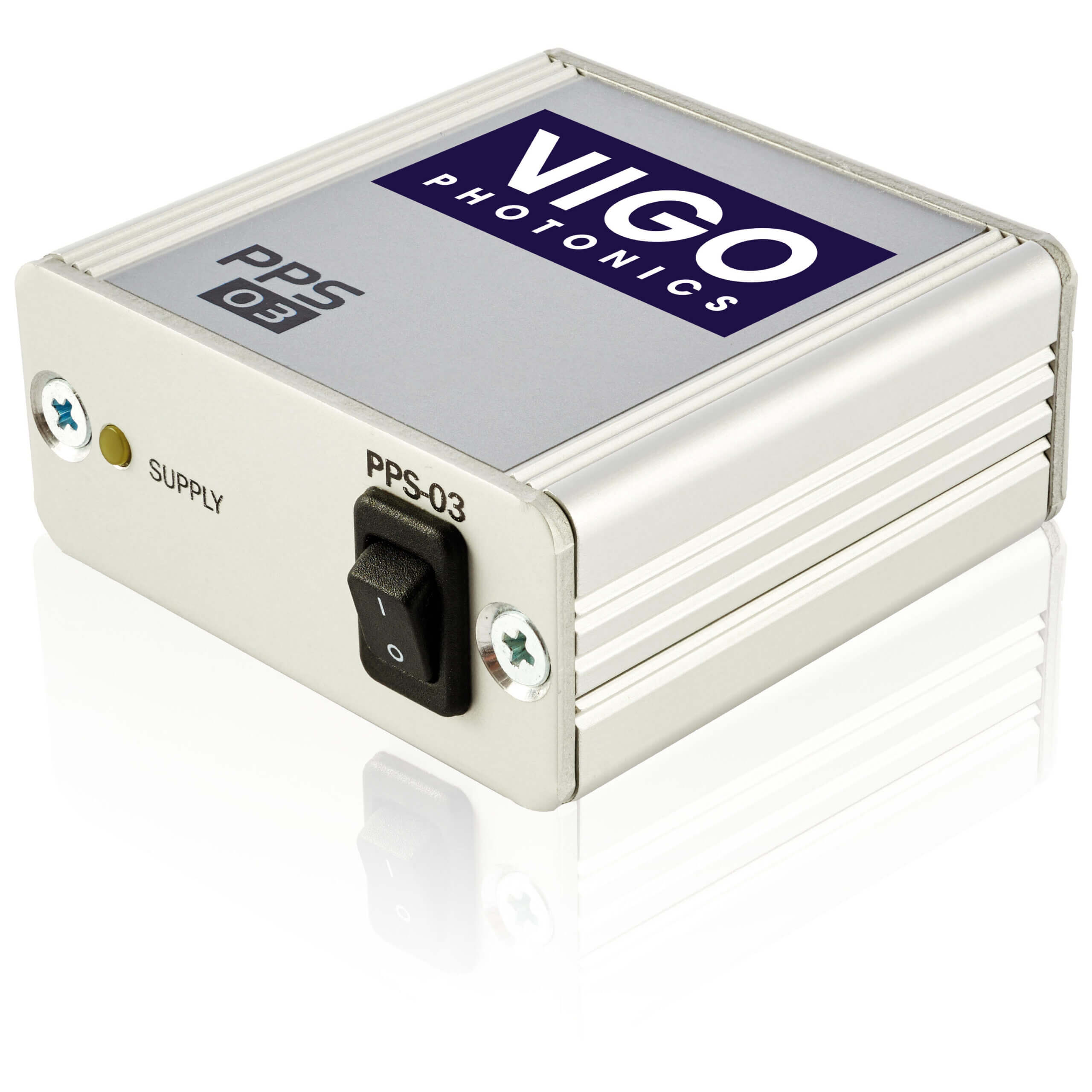

Universal

PPS-03 series

Preamplifier power supply

PPS-03 is a small-size, easy to use and universal preamplifier power supply, designed to operate with VIGO detection module microM-10.6 and other devices containing uncooled detectors in TO39 packages and preamplifiers SIP-TO39.

See specification

Download datasheet

See related files

Specification (T_a = 20°C)

Parameter	Typical value		Conditions, remarks
Power supply voltage V_sup, V_DC	min 9.0 max 16.0
Output voltage, V_DC	±15 ±9		PPS-03-15 PPS-03-09
Output current, mA	±100
IR module socket	DB9 (female)		D-sub 9 pin
Power supply socket	DC 2.1/5.5
Weight, g	100±5

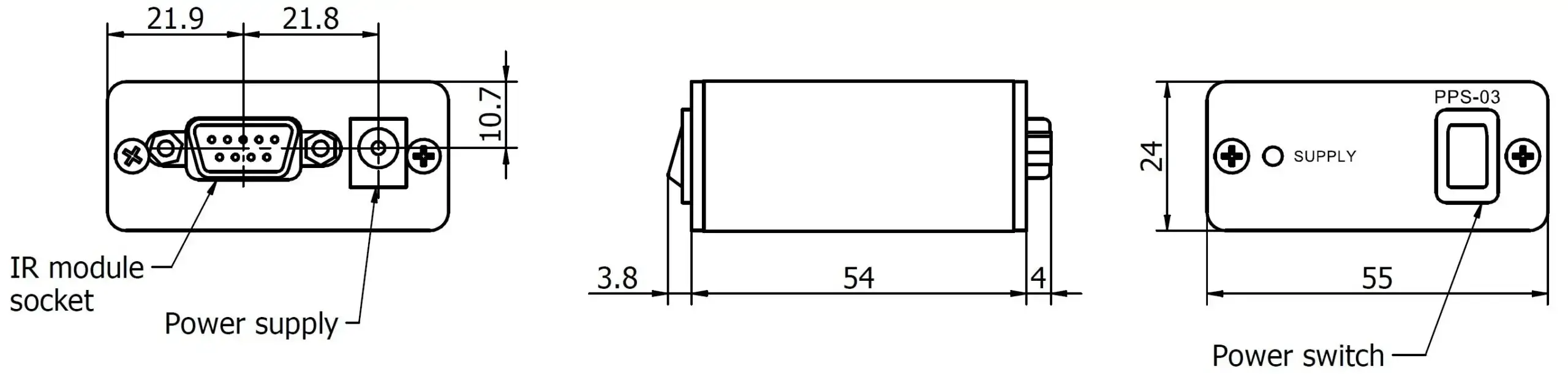

Mechanical layout, mm

PPS-03-scaled
