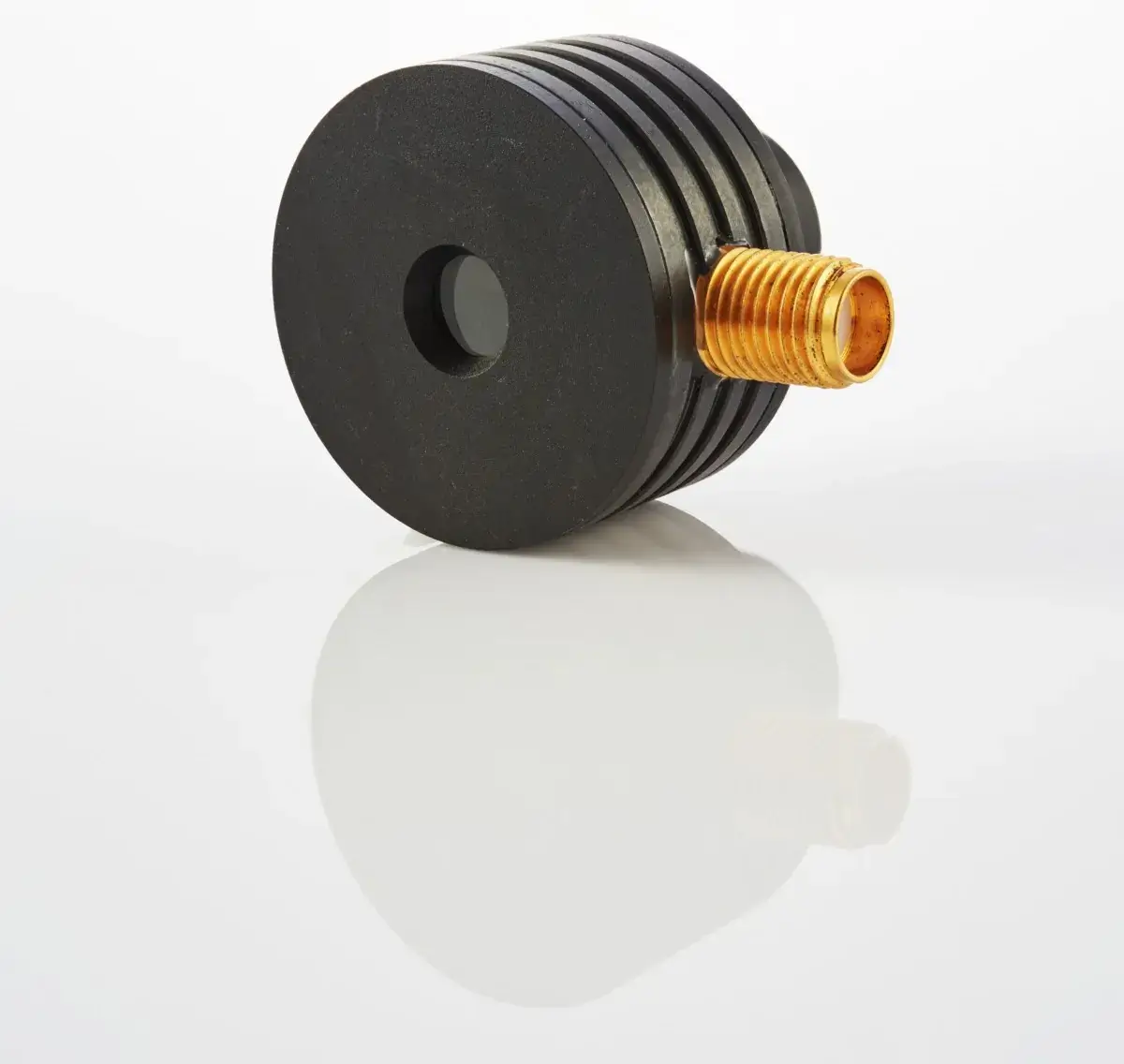

HgCdTe (MCT) Photovoltaic Detector

PEM-10.6-2×2-PEM-SMA-wZnSeAR-48

2.0 – 12.0 µm, ambient temperature, multiple junction

PEM-10.6-2×2-PEM-SMA-wZnSeAR-48 is uncooled IR photovoltaic multiple junction HgCdTe detector based on photelectromagnetic effect in the semiconductor – spatial separation of optically generated electrons and holes in the magnetic field. This device is designed for the maximum performance at λopt = 10.6 µm and especially useful as a large active area detector to detect CW and low frequency modulated radiation. This device is mounted in specialized package with incorporated magnetic circuit inside and SMA signal output connector. 3° wedged zinc selenide anti-reflection coated window prevents unwanted interference effects and protects against pollution.

ORDER

See specification

Features

Wide spectral range from 2.0 to 12.0 µm

Large active area 2×2 mm^2

Ambient temperature operation

Wide dynamic range

No bias required

No 1/f noise

Short time constant ≤ 1.2 ns

Sensitive to IR radiation polarisation

Convenient to use

Versatility

Very small size

Cost-effective solution

Quantity discounted price

Fast delivery

CO2 laser (10.6 µm) measurements

Laser power monitoring and control

Laser beam profiling and positioning

Laser calibration

Dentistry

Specification (Ta = 20°C)

Parameter
PEM-10.6-2×2-PEM-SMA-wZnSeAR-48
Active element material
epitaxial HgCdTe heterostructure
Cut-on wavelength λcut-on (10%) µm
≤2.0
Peak wavelength λpeak, µm
8.5±1.5
Optimum wavelength λopt, µm
10.6
Cut-off wavelength λcut-off (10%) µm
≥12.0
Detectivity D*(λpeak), cm⋅Hz1/2/W
≥2.0×107
Detectivity D*(λopt), cm⋅Hz1/2/W
≥1.0×107
Current responsivity Ripeak), A/W
≥0.002
Current responsivity Riopt), A/W
≥0.001
Time constant τ, ns
≤1.2
Resistance R, Ω
≥40
Active area A, mm×mm
2×2
Package
PEM-SMA
Acceptance angle, Φ
~48°
Window
wZnSeAR

Spectral response (Ta = 20°C)

PEM-10.6-2x2-PEM-SMA-wZnSeAR-48

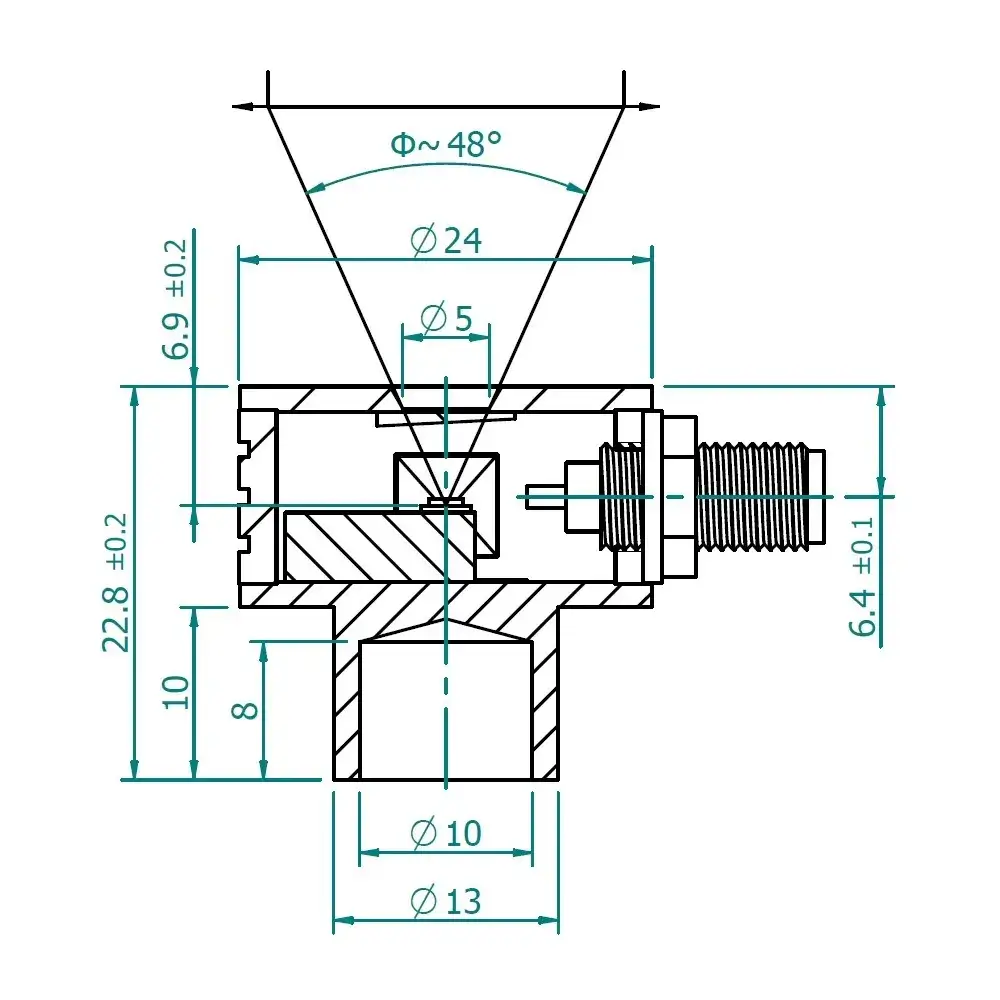

Mechanical layout, mm

PEM-SMA-non-imm-1

PEM-SMA package
